Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
SKU:VAL-7c1b0e
Durable Equal Non Return Valve for hydraulic systems, 100 bar pressure, carbon steel construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

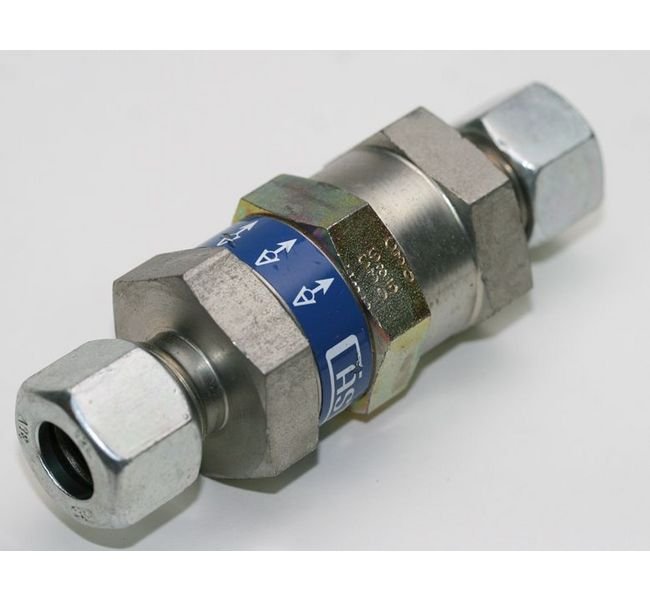

The Equal Non Return Valve with B3 Ring is designed for light-duty applications with a nominal operating pressure of 100 bar. Constructed from durable carbon steel, this valve features a tube diameter of 35.0mm, ensuring reliable performance. The compact design with CH1 and CH2 dimensions of 70mm and 50mm respectively, along with a pass diameter of 29mm, offers seamless integration. Ideal for hydraulic systems, this valve is compliant with industry standards for superior functionality and longevity.

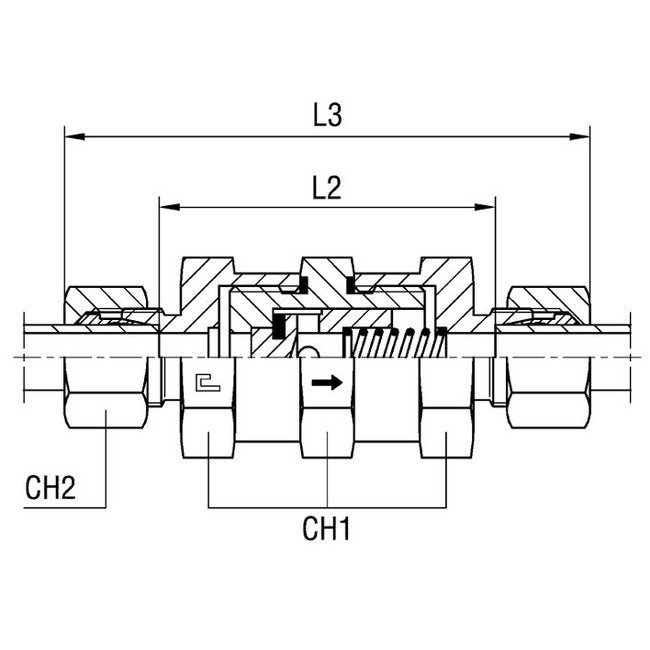

Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
50 mm
Specifications Diameter Pass
29 mm
Specifications L2
95 mm
Specifications L3
138 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
35.0 mm
Category 6
Equal Non Return Valve
