Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
SKU:VAL-d6f9d3
Durable Equal Non Return Valve for hydraulic systems. Stainless steel construction, 28mm tube diameter, 100 bar pressure. Reliable flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve with B3 Ring - DIN Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

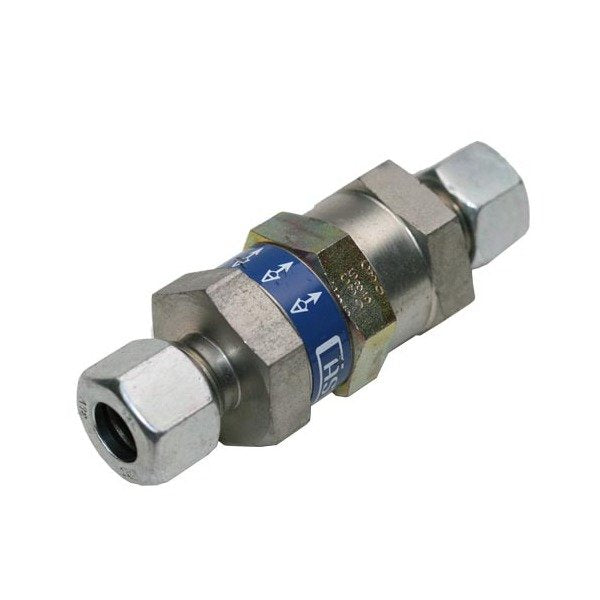

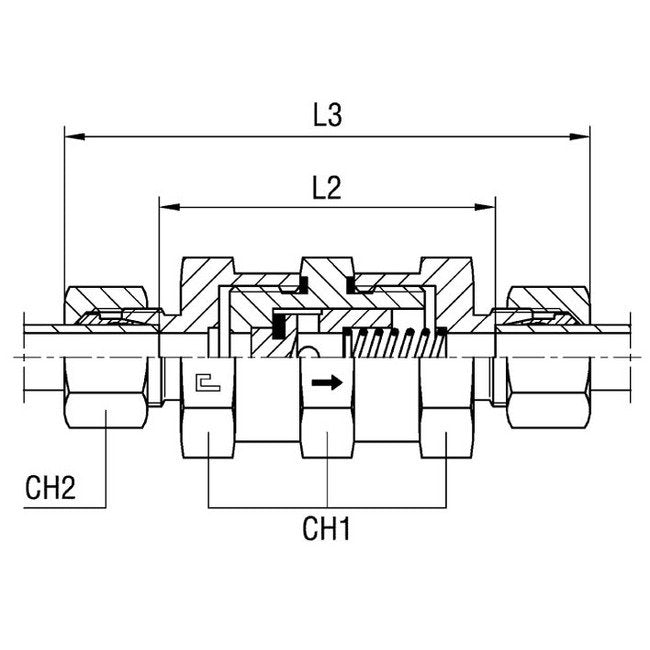

The Equal Non Return Valve with B3 Ring is a high-quality hydraulic check valve designed for light-duty applications with a nominal operating pressure of 100 bar. Made from durable stainless steel, this valve features a tube diameter of 28mm, ensuring reliable performance and longevity. With precise dimensions including L2: 79mm, L3: 112mm, CH1: 50mm, and CH2: 41mm, it provides efficient flow control with a diameter pass of 18mm. Ideal for industrial use, this valve meets stringent standards for quality and durability.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
41 mm
Specifications Diameter Pass
18 mm
Specifications L2
79 mm
Specifications L3
112 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
28 mm
Category 6
Equal Non Return Valve
