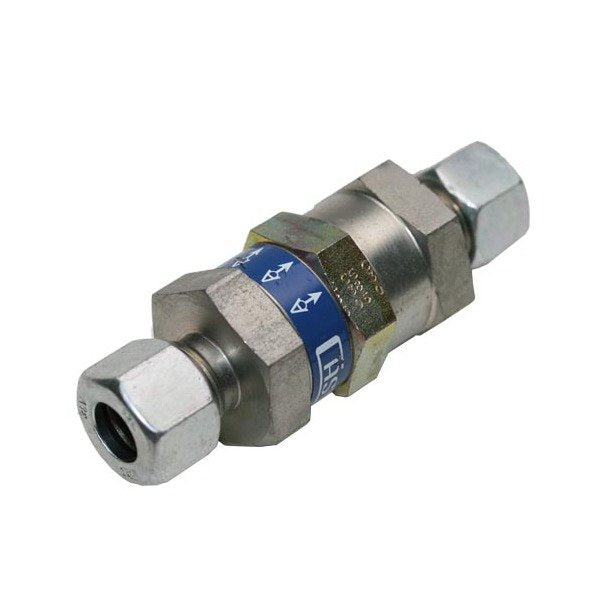

Equal Non Return Valve with Equipped B3 Ring - Stainless Steel, 250 Bar Pressure

Name: Equal Non Return Valve with Equipped B3 Ring - Stainless Steel, 250 Bar Pressure
Brand: World Wide Metric, Inc.
SKU: FIT-ae1c52
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-ae1c52

Precision-engineered Equal Non Return Valve with Equipped B3 Ring for efficient hydraulic systems. Stainless steel, 250 bar pressure.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

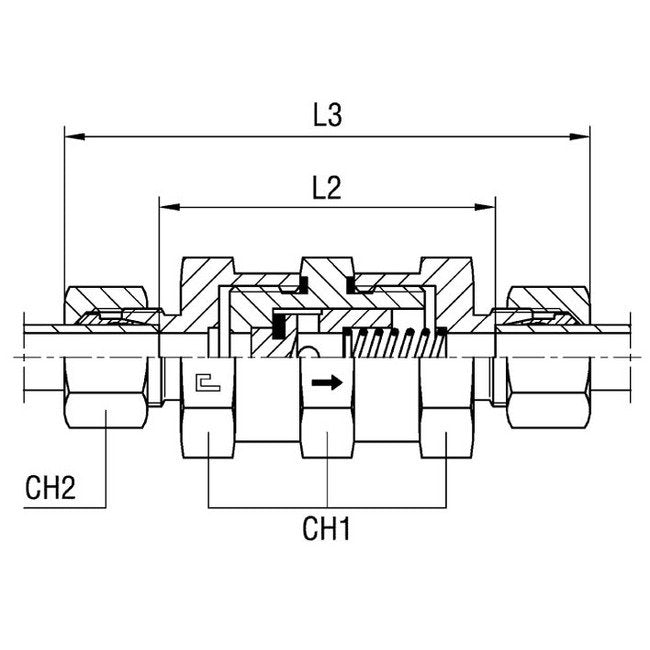

The Equal Non Return Valve with Equipped B3 Ring is a reliable hydraulic check valve designed for light-duty applications. With a nominal operating pressure of 250 bar, a tube diameter of 6.0mm, and precision-engineered stainless steel construction, this valve ensures efficient fluid control and prevents backflow. Its compact design with specific dimensions like L2, L3, CH1, CH2, and a diameter pass of 4mm makes it suitable for various hydraulic systems. Compliant with industry standards, this valve offers durability and precise functionality, catering to the needs of institutional buyers.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

14 mm

Specifications Diameter Pass

4 mm

Specifications L2

54.0 mm

Specifications L3

83 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm

Equal Non Return Valve with Equipped B3 Ring - Stainless Steel, 250 Bar Pressure
