Equal Non Return Valve with O-ring Body
Equal Non Return Valve with O-ring Body
SKU:FIT-208f28
High-performing Equal Non Return Valve with O-ring Body for hydraulic systems, available in multiple pressure and tube diameter options.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Valve with O-ring Body
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve with O-ring Body
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

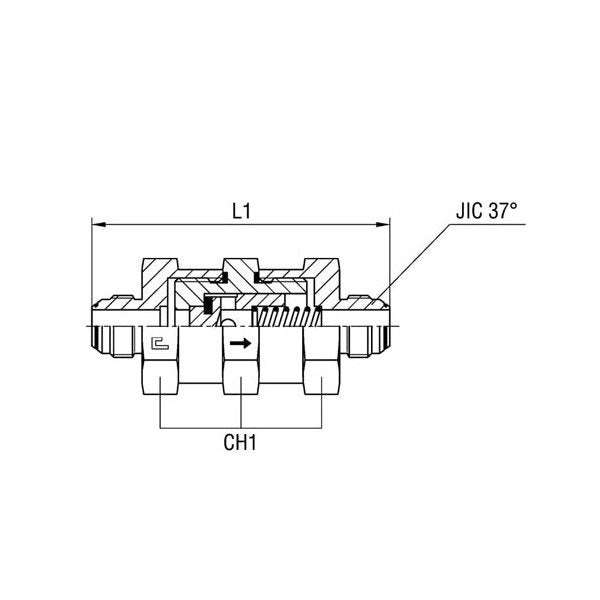

The Equal Non Return Valve with O-ring Body ensures exceptional performance and reliability in hydraulic systems. Available in Extra Light Duty, Heavy Duty, and Light Duty variations, with a Nominal Operating Pressure of 350 bar. Constructed from durable Carbon Steel, it features M-Tube Diameter options of 18mm or 20mm, W-Tube Diameter of 3/4 in, and JIC 37° Thread of 1 1/16-12. This valve, with a Diameter Pass. of 14.5mm and dimensions of L1: 109.8mm, CH1: 50mm, meets stringent industry standards for quality and precision.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
109.8 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
