Equal Non Return Valve with O-ring Seal
Equal Non Return Valve with O-ring Seal
SKU:FIT-05fd13
Enhance hydraulic system performance with the durable Equal Non Return Valve in various pressure options. Ideal for optimal flow control at up to 400 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Valve with O-ring Seal
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve with O-ring Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve with O-ring Body is designed for hydraulic systems requiring reliable flow control. With options for Extra Light Duty, Heavy Duty, and Light Duty pressures, this valve ensures precise performance at up to 400 bar nominal operating pressure. Crafted from durable Carbon Steel, it features a 4mm Diameter Pass., 8mm M-Tube Diameter, and 5/16in W-Tube Diameter. Ideal for hydraulic check valve applications, this valve guarantees efficient operation and longevity, meeting stringent industry standards.

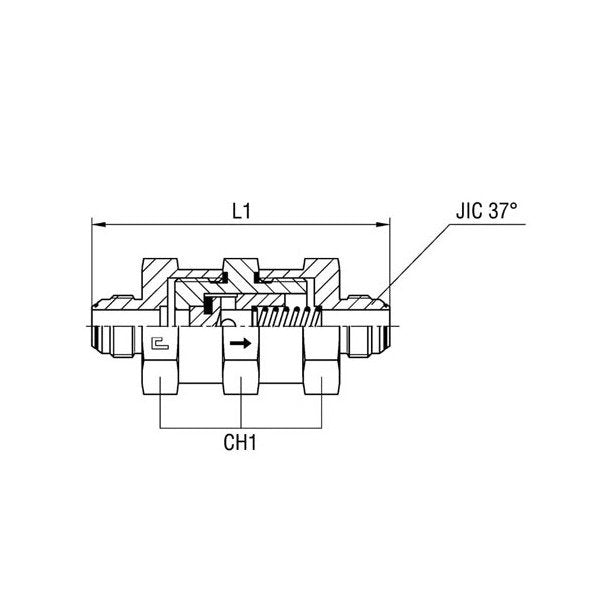

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
76.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
