Equal Stainless Steel Non Return Valve with B4 Ring
Equal Stainless Steel Non Return Valve with B4 Ring
SKU:VAL-33ee9e
High-performance stainless steel non-return valve with B4 Ring for heavy-duty hydraulic applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Equal Stainless Steel Non Return Valve with B4 Ring
$69.99
Quantity: 1
Claim Your Seller Account
Equal Stainless Steel Non Return Valve with B4 Ring
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Stainless Steel Non Return Valve with B4 Ring is designed for heavy-duty applications with a nominal operating pressure of 250 bar. Made of high-quality stainless steel, this valve ensures durability and reliability. With a tube diameter of 25.0mm and precise dimensions, it guarantees optimal performance. The inclusion of the B4 Ring further enhances its efficiency and functionality, making it a top choice for hydraulic systems in various industries.

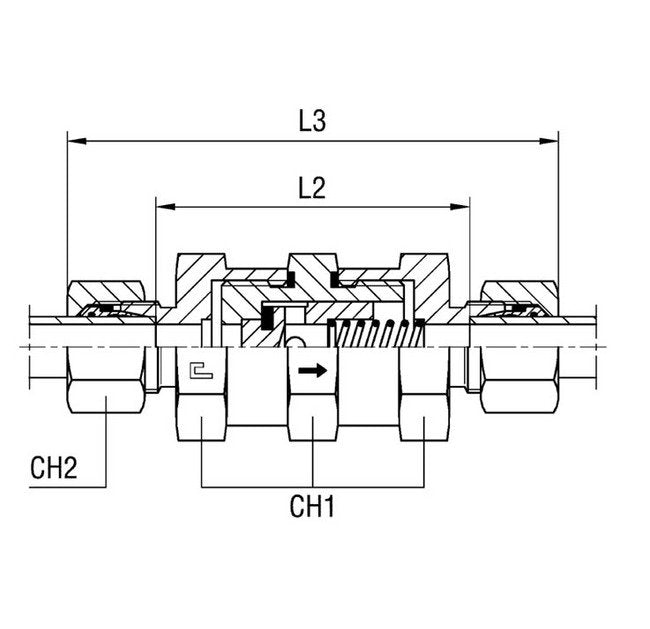

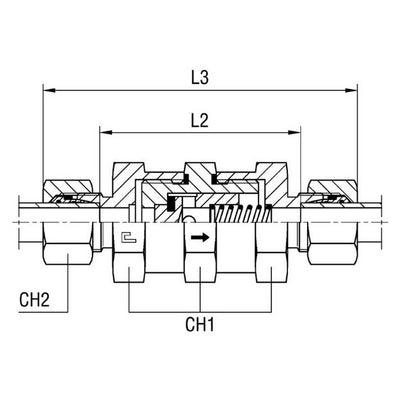

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
46 mm
Specifications Diameter Pass
18 mm
Specifications L2
78 mm
Specifications L3
126 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
25.0 mm
Category 6
Equal Non Return Valve
