Equipped B4 Ring Bulkhead Union - DIN 2353 Compression Fitting

Name: Equipped B4 Ring Bulkhead Union - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-55cdd7
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-55cdd7

Durable Light-Duty Carbon Steel Bulkhead Union, DIN 2353 Compliant, 28mm Tube Diameter, 160 Bar Nominal Pressure

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

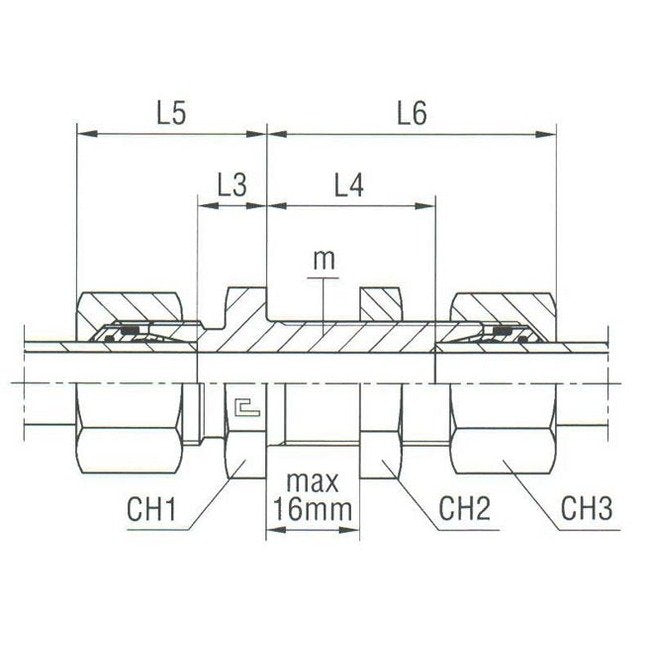

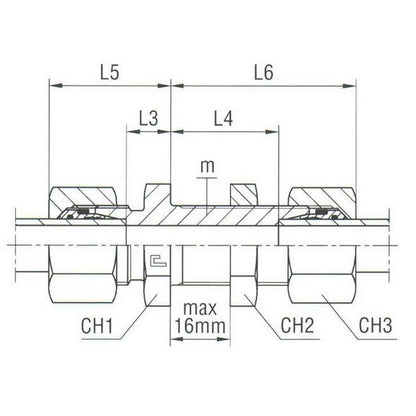

The Equipped B4 Ring Bulkhead Union is designed for light-duty applications, constructed from carbon steel to ensure durability. With a tube diameter of 28mm and a thread size of 36x2, it operates at a nominal pressure of 160 bar. Meeting DIN 2353 standards, this fitting offers precise dimensions: L3 - 18.5mm, L4 - 35.5mm, L5 - 35mm, L6 - 52mm, CH1 - 41mm, CH2 - 46mm, CH3 - 41mm. Its sturdy build and compliance make it ideal for various industrial settings.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

46 mm

Specifications Ch3

41 mm

Specifications L3

18.5 mm

Specifications L4

35.5 mm

Specifications L5

35 mm

Specifications L6

52 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

36x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm
