ES-200 Electric Heat Tunnel for Shrink Sleeve Labeling - 7.9 in Tunnel Width
ES-200 Electric Heat Tunnel for Shrink Sleeve Labeling - 7.9 in Tunnel Width
SKU:ELE-2f6b46
Efficiently shrink labels with precision using the ES-200 Electric Heat Tunnel for shrink sleeve labeling.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
ES-200 Electric Heat Tunnel for Shrink Sleeve Labeling - 7.9 in Tunnel Width
$8,999.99
Quantity: 1
Claim Your Seller Account
ES-200 Electric Heat Tunnel for Shrink Sleeve Labeling - 7.9 in Tunnel Width
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

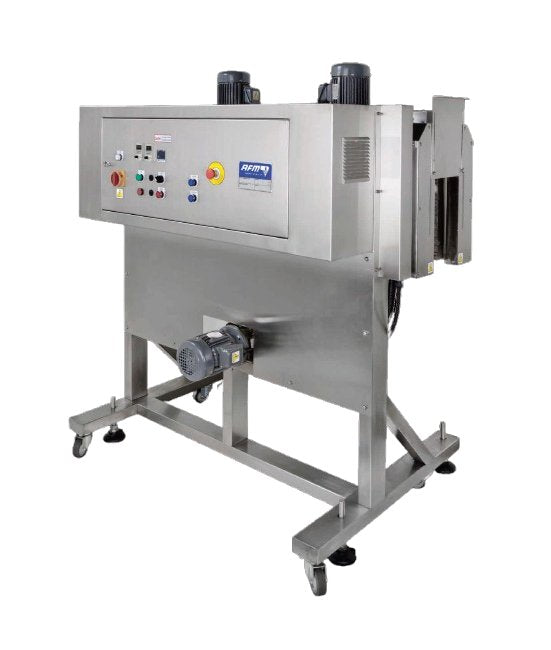

The ES-200 Electric Heat Tunnel is a robust solution designed for precision shrink labeling applications in various industries such as food, beverage, pharmaceutical, and consumer goods. With a tunnel width of 7.9 inches, this tunnel provides efficient and uniform heat distribution using high-quality electric heating elements, ensuring optimal shrink control for a variety of films. Equipped with two independent VFD air flow controls, this tunnel allows for precise air flow regulation in two zones, enhancing shrink quality and finish. Its rugged stainless steel construction, motorized height control, and user-friendly design make it a reliable and versatile choice for shrink sleeve labeling operations, offering maximum uptime and cost savings.
Product Specifications
Built For Your Operation Built For Your Operation
Designed to work as an integral part of your day-to-day packaging operations, the ES-200 tunnel is constructed from rugged stainless steel and supplied with a cantilevered stainless steel stand. Motorized height control makes installation easy and can be completed in minutes using standard tools to have you up and running, saving your company money and increasing your ROI. Due to its versatility and reliability, the ES-200 Electric Heat Tunnel is also ideal for the changing needs of contract packagers. For the changing

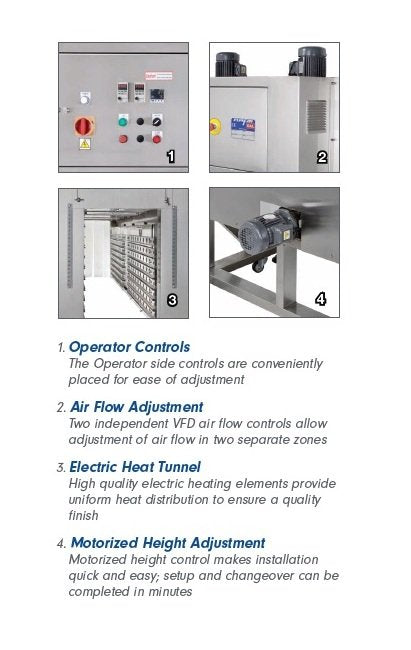

Designed To Perform Designed To Perform
The ES-200 utilizes a 1500 mm x 200 mm x 350 mm tunnel opening to accommodate a number of shrink sleeve applications. The tunnel has a maximum temperature of 400°F and features high quality electric heating elements for uniform heat distribution. Changing containers or labels create no problems, air controls and adjustments are done from the operator side of the tunnel, making adjustments safe, quick and easy.
More Control More Performance More Control More Performance
Shrink quality shouldnât be limited by your machineâs capabilities. The ES-200 Electric Heat Shrink Tunnel comes equipped with two independent VFD air flow controls that allow the air flow in each of the two zones to be regulated separately. The almost infinite air flow adjustment paired with accurate, consistent digital temperature control and adjustable air delivery louvers make the ES-200 an extremely versatile shrink tunnel. The ES-200 provides optimal shrink control and high quality finish on a number of films including PVC, PETG, OPS and PLA.
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
63 to 74.8 in | 1600 to 1900 mm
Technical Specs Machine Length
59 in | 1500 mm
Technical Specs Machine Width
39.3 in | 1000 mm
Technical Specs Motor Type
Alternating Current (AC)
Technical Specs Number Of Motors
2
Technical Specs Phase
3
Technical Specs Power Rating
1/2 hp
Technical Specs Temperature Range
400 ºF
Technical Specs Tunnel Height
13.8 in | 350 mm
Technical Specs Tunnel Length
59 in | 1500 mm
Technical Specs Tunnel Width
7.9 in | 200 mm
Technical Specs Voltage
240 V | 480 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs
