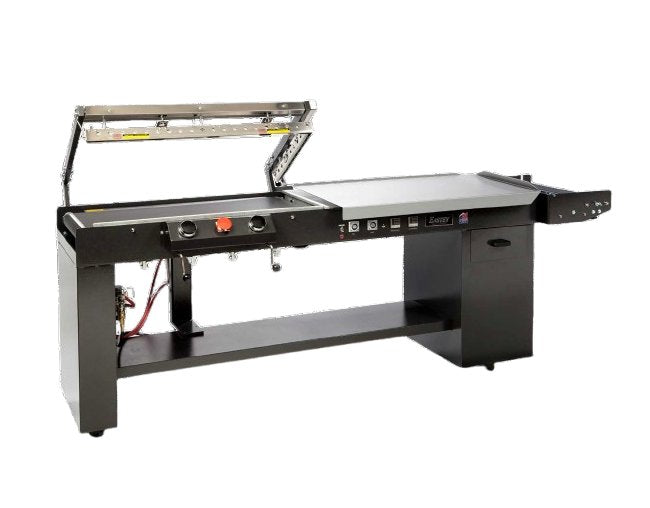

ESA Pro Series Pneumatic L-Sealer 50" Front, 40" Side
ESA Pro Series Pneumatic L-Sealer 50" Front, 40" Side
SKU:ESA-a090c4
Eastey® ESA Pro Series Pneumatic L-Sealer - Ultimate durability and reliability for secure sealing.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
ESA Pro Series Pneumatic L-Sealer 50" Front, 40" Side
$12,500.00
Quantity: 1
Claim Your Seller Account
ESA Pro Series Pneumatic L-Sealer 50" Front, 40" Side
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ESA Professional Series 50 Inch Seal Front Size and 40 Inch Seal Side Size Pneumatic Semi-Automatic L-Sealer by Eastey® sets the industry standard for durability and reliability. Expertly welded from 1/4' cold rolled steel, this L-Sealer is designed to withstand even the most demanding sealing applications. With features like pneumatic operation, stainless steel film clamps, and cast seal arms, this L-Sealer ensures a secure seal for a variety of films, including polyolefin, polyethylene, and PVC. Made in the USA, Eastey® has been a trusted leader in shrink packaging for over 25 years.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
126 in | 320 cm
Machine Dimensions Machine Width
53 in | 135 cm
Note Note
Powered film unwind included
Proven Reliability For Your Needs Proven Reliability For Your Ne
Eastey® L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, pneumatic operation, stainless steel film clamps, and heavy-duty magnet clamping are just some of the features that provide the durability you have come to rely on from Eastey®. See for yourself why Eastey® has been a leader in the shrink packaging industry for over 25 years.
Seal Dimensions Seal Front Size
50 in | 127 cm
Seal Dimensions Seal Side Size
40 in | 101 cm
Standard Features Standard Features
Designed to seal most polyolefin, polyethylene, and PVC (Powered film unwind included) shrink filmsAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingDual palm pneumatic seal head activationHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmsAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50" ; front seal size from 16" - 100"Maximum film width up to 44"Maximum film roll OD up to 12"; 10" with power unwindCustom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110V, 220V, or optional 480V60-80 psi air requirementEasy to use design requires minimal training and maintenanceMade in the USA
Standard Power Current
20 A
Standard Power Optional Voltage
480 V
Standard Power Phase
1
Standard Power Voltage
220 V
Technical Specs Air Pressure
60 to 80 psi
Technical Specs Brands
Eastey®
Technical Specs Shipping Weight
2000 lb | 907 kg
Technical Specs Weight
1900 lb | 861 kg
