ESA Professional 80" Pneumatic Semi-Automatic L-Sealer
ESA Professional 80" Pneumatic Semi-Automatic L-Sealer
SKU:PAC-b298d5
Reliable & durable ESA Professional 80" Pneumatic L-Sealer for secure shrink film sealing.
Regular price
$7,599.99
Regular price
Sale price
$7,599.99
Unit price
per
Initiate Order
ESA Professional 80" Pneumatic Semi-Automatic L-Sealer
$7,599.99
Quantity: 1
Claim Your Seller Account
ESA Professional 80" Pneumatic Semi-Automatic L-Sealer
$7,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

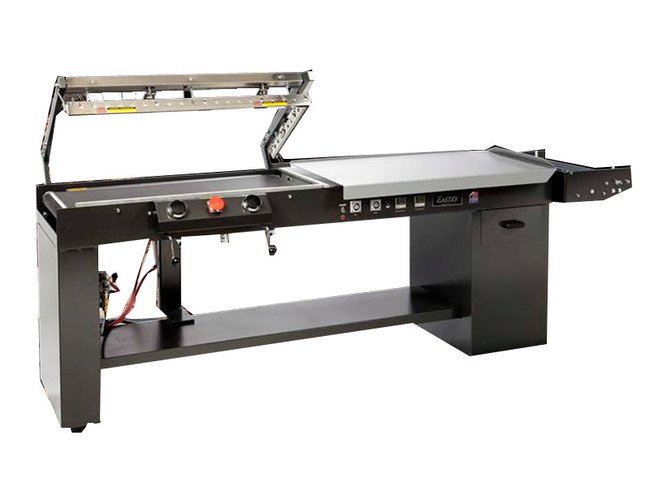

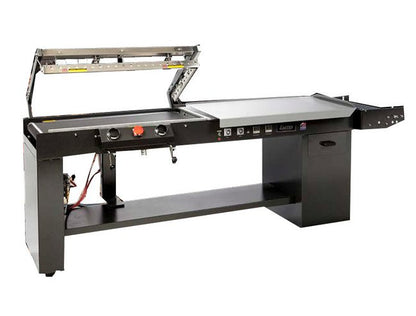

The ESA Professional Series 80" Front Seal Dimension Pneumatic Semi-Automatic L-Sealer by EASTEY is engineered for durability and high-performance sealing applications. Constructed from robust 1/4" cold rolled steel, this L-Sealer is designed to withstand heavy-duty use, providing exceptional strength and reliability. With features like stainless steel film clamps, dual palm pneumatic seal head activation, and adjustable dwell time, this machine ensures a secure seal for a variety of films. The user-friendly design, coupled with advanced features, makes the ESA Professional L-Sealer a top choice for shrink packaging applications.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEastey L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, pneumatic operation, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
187 in | 474 cm
Machine Dimensions Machine Width
43 in | 109 cm
Note Note
Made in the USA
Optional Accessories Optional Accessories

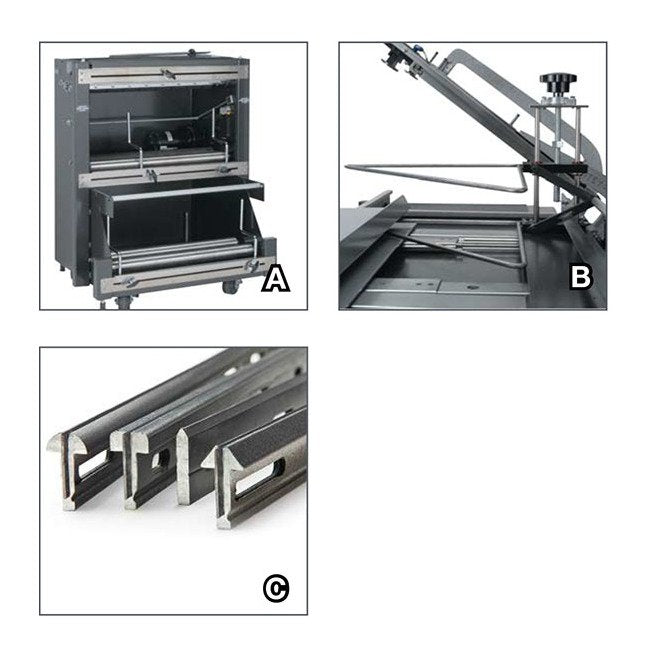

Power film unwind - Allows free feeding of film increasing operator efficiencyFilm Inverter - Inverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife Inserts - Hot knife inserts available in Mushroom, Pancake, or Arrow stylesLeft Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
80 in | 203 cm
Seal Dimensions Side Seal Dimension
30 in | 76.20 cm
Specifications Air Connection
60 to 80 psi
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
1900 lb | 861 kg
Specifications Weight
1800 lb | 819 kg
Standard Features Standard Features

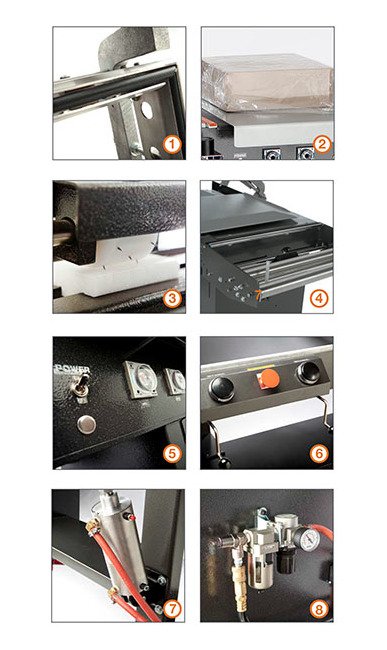

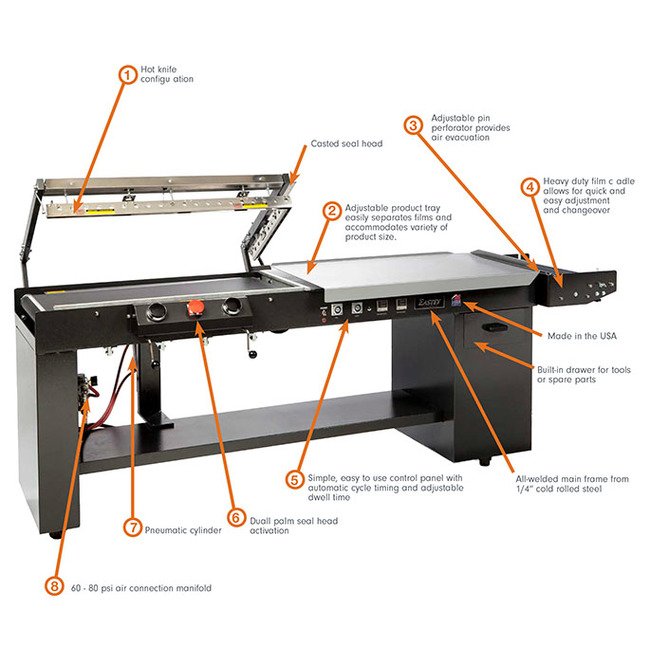

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingDual palm pneumatic seal head activationHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480v60-80 psi air requirementEasy to use design requires minimal training and maintenance
Standard Power Current
25 A
Standard Power Phase
1
Standard Power Voltage
220 V
