ESA Professional Series 28in Pneumatic L-Sealer
ESA Professional Series 28in Pneumatic L-Sealer
SKU:PAC-c27b7f
Dependable 28in Pneumatic L-Sealer for industrial sealing needs
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
ESA Professional Series 28in Pneumatic L-Sealer
$5,899.99
Quantity: 1
Claim Your Seller Account
ESA Professional Series 28in Pneumatic L-Sealer
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

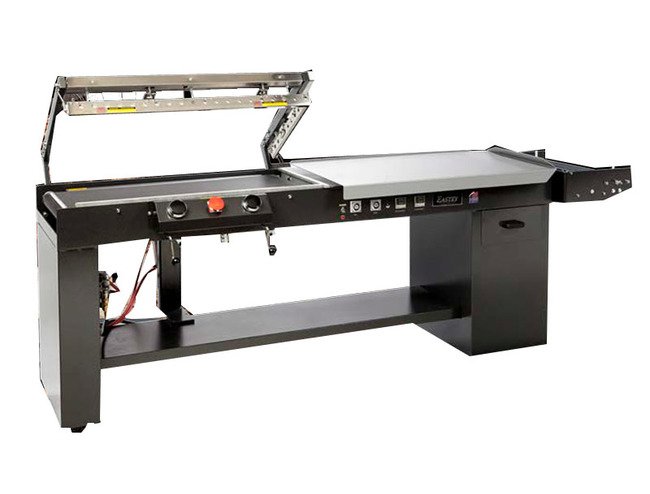

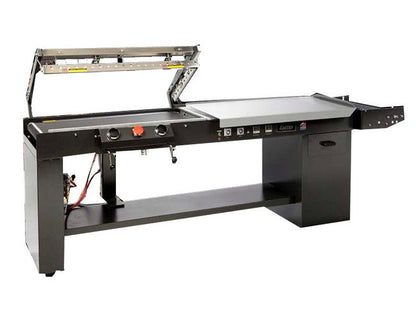

The ESA Professional Series 28in Pneumatic Semi-Automatic L-Sealer from EASTEY is a robust solution designed for dependable sealing of various films including polyolefin, polyethylene, and PVC. Crafted from 1/4" cold rolled steel, this L-Sealer is built for durability and reliability in the most demanding sealing applications. With features like pneumatic operation, stainless steel film clamps, and solid state temperature control, it offers precise sealing and consistent performance. The adjustable dwell time, dual locking magnet clamps, and heavy-duty film cradle enhance efficiency and flexibility, making it ideal for industrial and institutional packaging needs.
Product Specifications
Additional Information Additional Information
PROVEN RELIABILITY FOR YOUR NEEDSEastey L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, pneumatic operation, stainless steel film clamps, and heavy duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Machine Dimensions Machine Height
44 in | 112 cm
Machine Dimensions Machine Length
84 in | 213 cm
Machine Dimensions Machine Width
34 in | 86.36 cm
Note Note
Made in the USA
Optional Accessories Optional Accessories

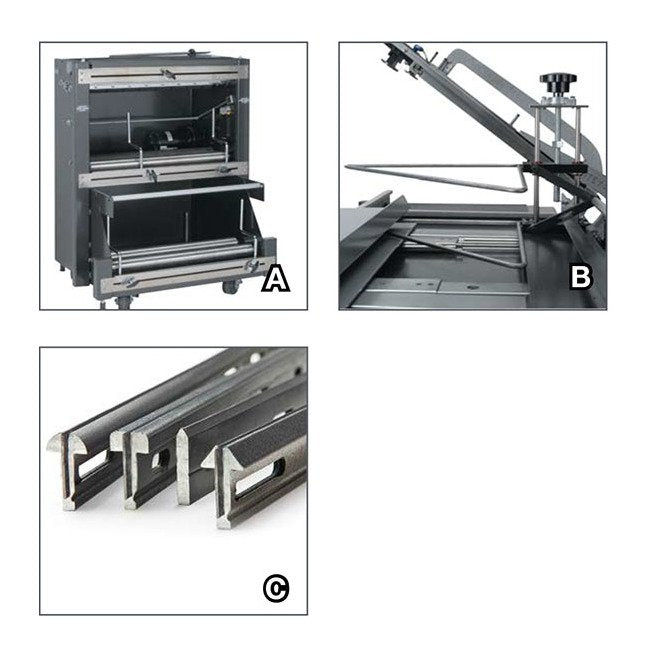

Power film unwind - Allows free feeding of film increasing operator efficiencyFilm Inverter - Inverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output.Hot Knife Inserts - Hot knife inserts available in Mushroom, Pancake, or Arrow stylesLeft Hand Models AvailableDuoSeal Continuously Heated Seal BarLower ConveyorCustomer Product Guides and/or Product Tray
Seal Dimensions Front Seal Dimension
28 in | 71 cm
Seal Dimensions Side Seal Dimension
20 in | 51 cm
Specifications Air Connection
60 to 80 psi
Specifications Maximum Film Roll Outside Diameter
0 to 12 in
Specifications Maximum Film Width
0 to 44 in
Specifications Shipping Weight
800 lb | 362 kg
Specifications Weight
700 lb | 317 kg
Standard Features Standard Features

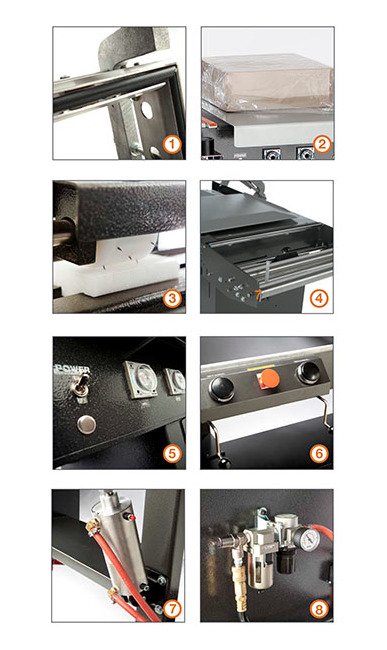

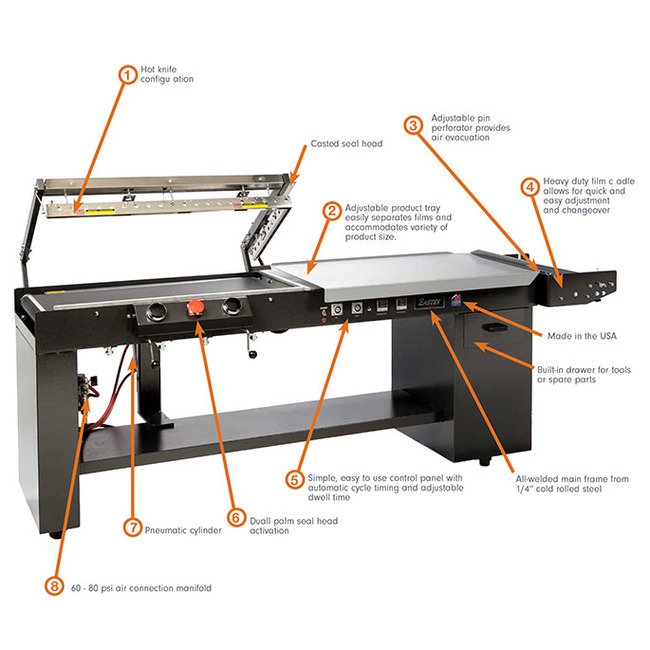

Designed to seal most polyolefin, polyethylene, and PVC (with Hot knife systems only) shrink filmAll-welded main frame from 1/4" cold rolled steelBuilt-in drawer for tools or spare partsSeal head casting equipped with head return cylinderStainless steel film clamps hold film in place while sealingDual palm pneumatic seal head activationHot knife seal systems available with mushroom (standard), pancake, or arrow insertsDual locking magnet clamps apply even pressure across sealbarAdjustable dwell time for better seal controlSolid state temperature control adjustable for a variety of filmAdjustable product tray accommodates wide variety of product sizesTakeaway conveyor can be raised or lowered to center-seal productAutomatic takeaway conveyorHeavy duty film cradle allows for easy changeovers and adjustmentsAdjustable pin perforator provides air evacuationSide seal size from 20" - 50"; front seal size from 16" - 100"Custom two-part epoxy finish resists scratchingHeavy duty casters for transportation within plantAvailable in 110v, 220v, or optional 480v60-80 psi air requirementEasy to use design requires minimal training and maintenance
Standard Power Current
10 A | 20 A
Standard Power Phase
1
Standard Power Voltage
110 V | 220 V
