ESM 6 Series Screw Air Compressor - 680 mm Length
ESM 6 Series Screw Air Compressor - 680 mm Length
SKU:NEW-91cf8a
Enhance efficiency with the ESM 6 Series Screw Air Compressor - 680mm length. ISO compliant, low maintenance, and user-friendly.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
ESM 6 Series Screw Air Compressor - 680 mm Length
$8,999.99
Quantity: 1
Claim Your Seller Account
ESM 6 Series Screw Air Compressor - 680 mm Length
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

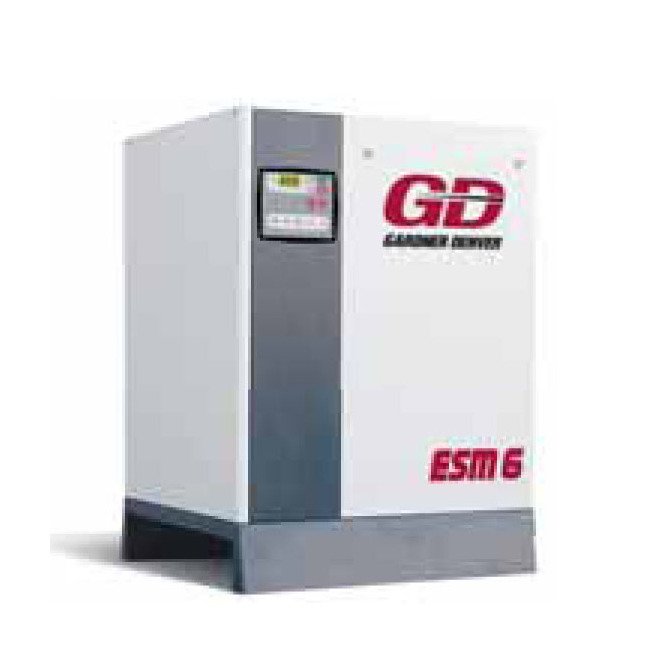

The 680mm Length ESM 6 Series Screw Air Compressor offers maximum flexibility with a compact design for quick installation. It features a maximum target pressure of 8 bar, a capacity of 1.05 m³/min, a noise level of 67 dBA, and easy-to-use AirBasic2 controller. With low operating costs, high reliability, and compliance with ISO standards, this compressor is ideal for ensuring cost-effective functioning and reliable performance.
Product Specifications

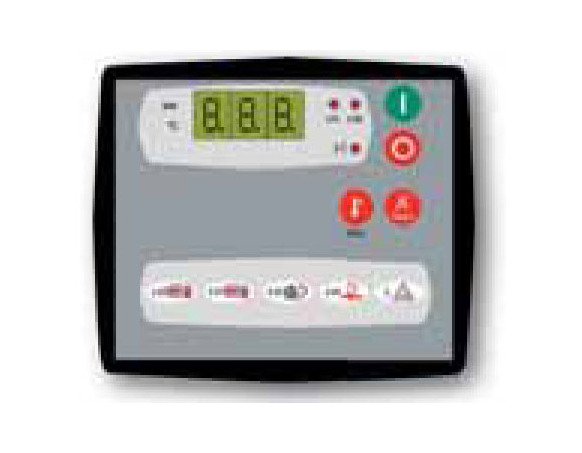

Airbasic2 Controller
Pressure setting can be easily adjusted via the controller.
Auxiliary Equipment
Compressed air after treatment products.
Easy To Use
This package was designed to keep the design concept as simple as possible while at the same time it is so quiet that it can be installed where it is needed without special consideration for noise.The electronic AirBasic2 controller has four easy-to-use operating buttons including easy adjustment of pressure settings via the controller.Also the air end rotation control and following maintenance timer are displayed:Air filter replacementOil filter replacementSeparator filter replacementOil changeRegular maintenance advise
Low Operating Costs
ESM 6 compressors are optimal for users who want to attain the best possible working pressure with cost-effective functioning and low running costs. By using the high quality parts, you'll be able to reduce compressor's operation and maintenance costs and obtain the best possible result.
Note
For additional information please contact Gardner Denver™ or your local representative.
Optional Equipment

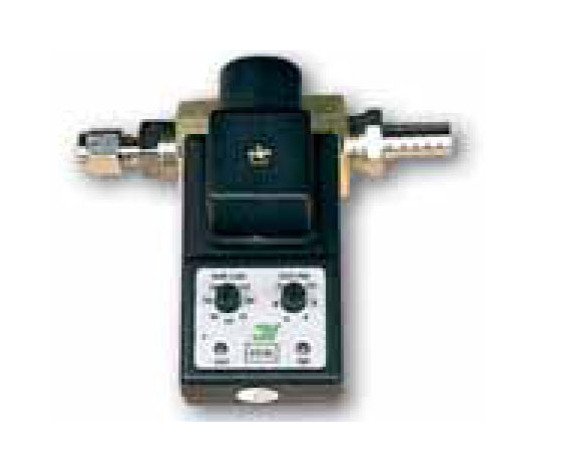

Special voltagesRefrigerant add-on dryer; 3ºC dew point at 25ºC ambient temperature (ISO 7183), refrigerant fulfils the EC norm No. 2037/2000 requirementsFilter kit for add-on dryerTimed automatic drain for receiver
Optional Maximum Flexibility

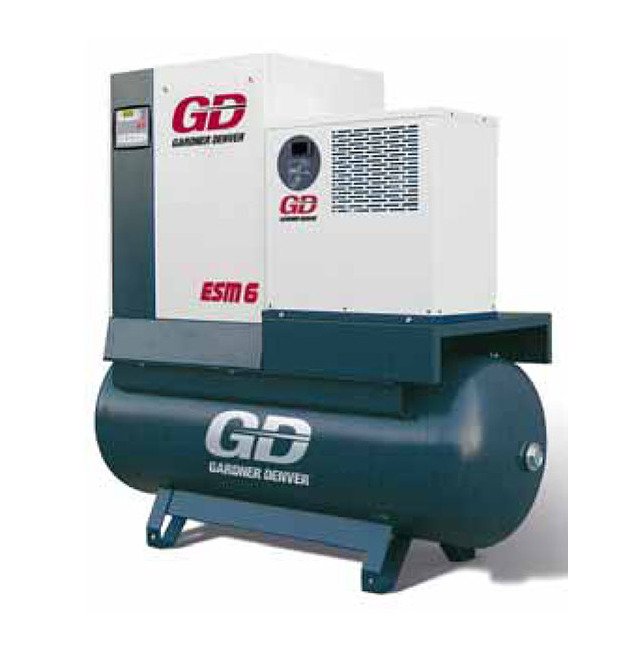

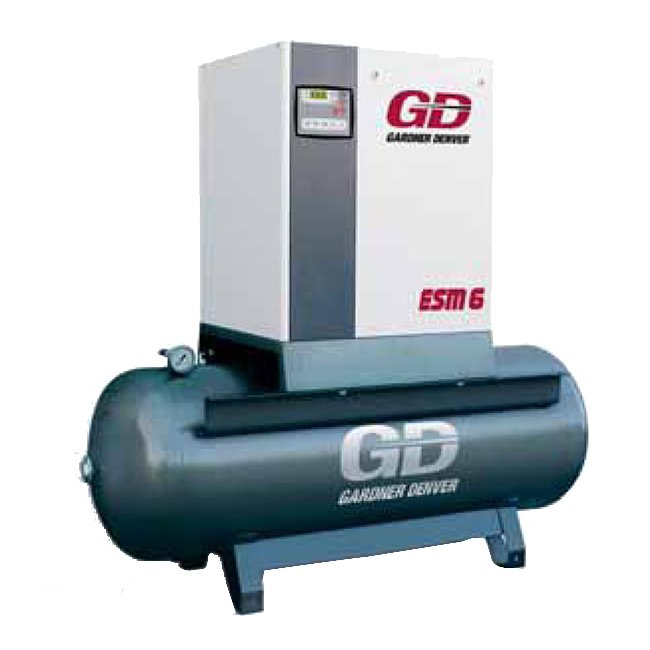

Based on the customer requirements, these compressors can be supplied with many special options to provide a complete compressor station:Tank mounted and with add-on refrigerant dryer plus filter kitDifferent pressures available at 8, 10, and 13 bar
Options
Automatic condensate drain system | Kit of filters with by-pass
Simple Maintenance
Installation takes only a few minutes. All the service points are easily accessible through the removable side doors.The simple design minimizes the number of moving parts, resulting in lower maintenance costs.Air/Oil filter separator and oil filter are mounted side by side to ensure easy access for maintenance purposes.
Specifications Industry Standardscertifications
ISO 2151 | ISO 3744 | ISO 7183
Specifications Series
ESM
Standard Equipment
Air-inlet filterOverload relay protectionStar/delta starter with AirBasic2 electronic controllerPressure sensor for pressure controlElectric motors, IP 55, F-class insulationOil level monitoring, sight glassBelt transmissionSafety devices for:Motor overloadCompressor over temperature, trip at 110ºCCompressor overpressure (safety valve)Running condition indicators:PressureTemperatureTotal hours and load hours counterEpoxy powder coated enclosureAfter coolerOil thermostatENDURO® air endFactory fill - AEON™ 3000 lubricant
Technical Data Esm 6 Capacity At Working Pressure
1.05 m³/min | 37 ft³/min
Technical Data Esm 6 Height
1000 mm
Technical Data Esm 6 Length
680 mm
Technical Data Esm 6 Maximum Target Pressure
8 bar | 115 psig
Technical Data Esm 6 Motor Power
7.5 kW | 10 hp
Technical Data Esm 6 Net Weight
170 kg
Technical Data Esm 6 Noise Level
67 dBA
Technical Data Esm 6 Width
600 mm
Your Benefits At A Glance
High ReliabilitySilent OperationDesigned to reduce and simplify maintenance operationsEasy to useAdvanced ENDURO® air end
