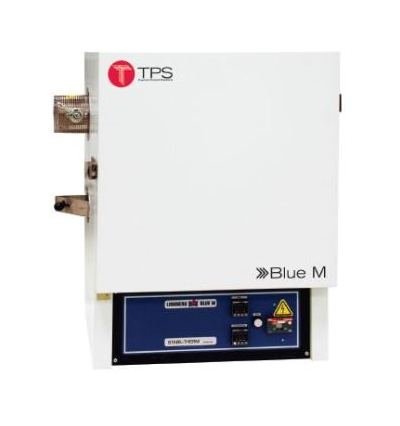

The Blue M ESP-400 Mechanical Convection Horizontal Air flow Oven provides reliable performance, making it ideal for constant temperature work and for applications where fast run-up and cool-down rates are required. A one-pass air flow system allows incoming air to pass over the heaters and through the work chamber only once, if desired, enabling fast cool down or quickly venting non-hazardous fumes or moisture. The horizontal air flow offers excellent temperature uniformity. The setpoint and process variables appear on a bright, easy-to-read LED display. Setpoints are adjustable to 1°C resolution. The main control regulates temperature by switching heater power through a solid state relay circuit. An FM-approved independent over-temperature protection system is provided. This control disconnects heater and motor power and alarms an audible buzzer until manually reset by the user.
Product Specifications
Specifications Ac Voltage
120 V | 208 V | 240 V
Specifications Cabinet Finish
Painted
Specifications Current At 208 Volts V
13.5 A
Specifications Current At 240 Volts V
15.5 A
Specifications Exterior Depth
24 in | 610 mm
Specifications Exterior Height
37 in | 940 mm
Specifications Exterior Width
32 in | 800 mm
Specifications Frequency
60 Hz
Specifications Indication Resolution
1 ºC
Specifications Interior Depth
15 in | 380 mm
Specifications Interior Height
18 in | 450 mm
Specifications Interior Width
19 in | 480 mm
Specifications Line Current At 120 Volts V
16.5 A
Specifications Oven Features
All-welded, heavy-duty exterior - heavy-gauge, reinforced cold-rolled steel | Stainless steel interior corrosion resistant, including inner face of door | Adjustable shelves - nickel-plated wire type with 7 shelf positions | Baked-on powder-coated enamel finish for long-lasting corrosion protection | Fiberglass insulation to ensure moderate cabinet skin temperature | Heavy-duty door - double-wall, insulated construction
Specifications Oven Options
Circular chart recorder | Floorstand | Glass observation panel | Nickel-plated wire rod shelves
Specifications Rated Power At 120 Volts V
1.5 kW
Specifications Rated Power At 208 Volts V
2.5 kW
Specifications Rated Power At 240 Volts V
3.5 kW
Specifications Run Up Time To 260c No Loadno Exhaust
20 minutes at 240 Volts (V) | 30 minutes at 208 Volts (V) | 60 minutes at 120 Volts (V)
Specifications Temperature Control
Air circulation - quality ball bearing motor and balanced multi-blade blower | Available with profiling or single setpoint temperature controls Adjustable one-pass air flow system - tempered air passes over heater and through chamber only once if necessary - readily adjusted to suit a broad range of product loads and operating requirements | Exclusive Blue M Eterna™ heating elements with nichrome and ceramic heater bank provides quick response - low-watt density assures long life
