ETCU-30, Tenney ETCU Temperature Humidity Cycling Chamber
ETCU-30, Tenney ETCU Temperature Humidity Cycling Chamber
SKU:TEN-793017
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ETCU-30, Tenney ETCU Temperature Humidity Cycling Chamber
$49.99
Quantity: 1
Claim Your Seller Account
ETCU-30, Tenney ETCU Temperature Humidity Cycling Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

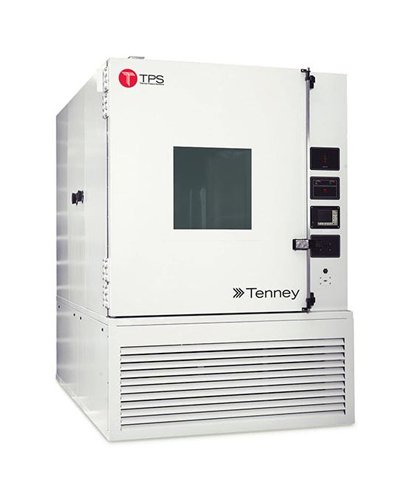

The Tenney ETCU Ultimate Series Temperature Humidity Cycling Chamber features scroll compressor technology that provides quiet operation, fast transition rates, and reliable operations. The chambers incorporate a ceiling plenum to diffuse conditioned air vertically through the chamber. The top-to-bottom air circulation guarantees stable and consistent performance over the testing period. Multiple heating and cooling systems are available, as well as a diverse list of options that together will create the chamber to accommodate your specific application.
Product Specifications
Specifications Air Cooled
Yes
Specifications Air Delivery
0.75 hp
Specifications Air Flow
1600 CFM
Specifications Compressor Type
Scroll
Specifications Cooling Time From 190 To 65c
20 min | 31 min | 76 min | 155 min
Specifications Cooling Time From 71 To 65c
17 min | 26 min | 59 min | 119 min
Specifications Cooling Time From 85 To 40c
12 min | 21 min | 42 min | 95 min
Specifications Exterior Depth
87 in | 2211 mm
Specifications Exterior Height
88 in | 2237 mm
Specifications Exterior Width
50 in | 1271 mm
Specifications Features
Quiet operation | Fast transition rates | High reliability refrigeration system | Temperature and humidity testing | Versa Tenn V control system | Automatic humidity vent
Specifications Heating Element Power 208 Volts V
4.5 kW | 9 kW | 18 kW
Specifications Heating Element Power 230 Or 460 Volts V
6 kW | 12 kW | 24 kW
Specifications Heating Time From 40 To 85c
11 min | 13 min | 27 min
Specifications Heating Time From 65 To 190c
20 min | 30 min | 60 min
Specifications Heating Time From 65 To 71c
10 min | 13 min | 17 min
Specifications Interior Depth
36 in | 914 mm
Specifications Interior Height
36 in | 914 mm
Specifications Interior Volume
30 ft³ | 850 L
Specifications Interior Width
40 in | 1016 mm
Specifications Noise While Cooling
68 dBA | 75 dBA
Specifications Noise While Heating
60 dBA
Specifications Nominal Horsepower
10 x 10 | 3.5 x 3.5 | 6 x 6
Specifications Options
6-Event relay board | Additional ports | Alternate refrigeration and/or heating systems for faster temperature change rates or increased product load-handling capabilities | Circular recording instruments | IEEE488 Interface | LinkTenn 32 for Windows® that permits your computer to control up to 5 chambers | Water demineralizer system
Specifications Rated Horsepower
10 x 10 | 2.5 x 2.5 | 5 x 5
Specifications Temperature Control
0.3 ºC
Specifications Temperature Uniformity
±0.5°C or ±1°C
Specifications Water Cooled
Yes
