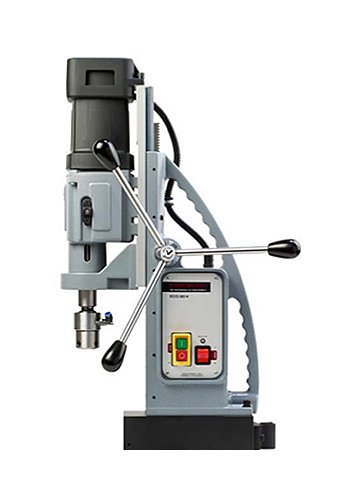

Euroboor 4-Speed Magnetic Drilling Machine ECO.80-4 with Morse Taper 3 Spindle

Name: Euroboor 4-Speed Magnetic Drilling Machine ECO.80-4 with Morse Taper 3 Spindle
Brand: Penn Tool Co.
SKU: ELE-7c0e85
Price: 1299.99 USD
Availability: OutOfStock

SKU:ELE-7c0e85

Euroboor ECO.80-4: Precision drilling for heavy tasks with Morse Taper 3 spindle and 4-speed gearbox.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Euroboor ECO.80-4 is a robust magnetic drilling machine designed for challenging twist drilling tasks. With a 4-speed gearbox and Morse Taper 3 spindle, it offers precise control and high performance. This machine features a very long stroke, clear controls, and is ideal for heavy drilling applications. Perfect for both consumer and institutional buyers looking for a reliable and efficient drilling solution.

Product Specifications

Features Features

4-speed gearboxMorse Taper 3 spindleHighly useful very long strokeClear and easy controlsPerfect solution for simple but heavy drilling tasks

Technical Specs Annular Cutters Diameter

1/2 to 3-3/16 in

Technical Specs Brands

Euroboor

Technical Specs Frequency

50 to 60 Hz

Technical Specs Length

14-3/8 in

Technical Specs Magnetic Force

6600 lb

Technical Specs Magnet Height

2-1/2 in

Technical Specs Magnet Length

8-11/16 in

Technical Specs Magnet Width

4-5/16 in

Technical Specs Motor Power

15.5 A

Technical Specs Speed Load

150 rpm | 200 rpm | 275 rpm | 400 rpm

Technical Specs Speed No Load

200 rpm | 320 rpm | 415 rpm | 650 rpm

Technical Specs Spindle

Morse Taper 3

Technical Specs Stroke

10-1/4 in

Technical Specs Total Power

16.4 A

Technical Specs Twist Drills Diameter

1 to 11/4 in

Technical Specs Voltage

110 to 120 V

Technical Specs Weight

61.7 lb

Technical Specs Width

20-1/16 in

Euroboor 4-Speed Magnetic Drilling Machine ECO.80-4 with Morse Taper 3 Spindle
