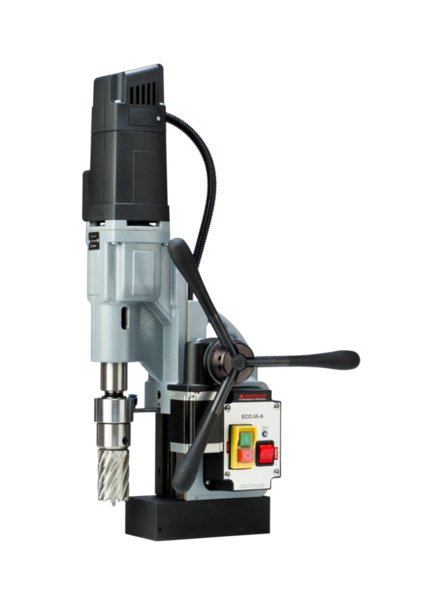

The Euroboor Automatic Magnetic Drilling Machine with intelligent electronics takes drilling efficiency to the next level. Equipped with a self-feed system, high precision slide & rail construction, and an integrated oil bath gearbox, this machine offers unmatched stability and performance. With automatic return functionality and digital read-out, it ensures precise drilling while maximizing productivity. Increase cutter lifetime and save costs with this top-tier drilling solution.
Product Specifications
Features Features

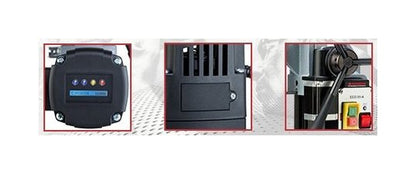

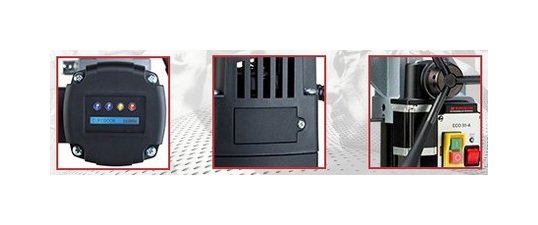

Full automatic drillingHigh precision slide & rail constructionIntegrated oil bath gearboxMorse Taper 3 spindleExternal access to carbon brushesDigital read - outIntelligent electronics combine maximum drilling speed with increased cutter lifetime
Technical Specs Annular Cutters Diameter
1/2 to 2-3/16 in
Technical Specs Brands
Euroboor
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
19-5/16 to 26 in
Technical Specs Length
13-9/16 in
Technical Specs Magnetic Force
4100 lb
Technical Specs Magnet Height
1-7/8 in
Technical Specs Magnet Length
6-11/16 in
Technical Specs Magnet Width
3-3/8 in
Technical Specs Motor Power
14.5 A
Technical Specs Mt3 Weldon Spindle
3/4 in
Technical Specs Speed Load
100 to 500 rpm | 60 to 175 rpm
Technical Specs Speed No Load
100 to 500 rpm | 60 to 275 rpm
Technical Specs Stroke
6-11/16 in
Technical Specs Total Power
15.6 A
Technical Specs Twist Drills Diameter
1/16 to 15/16 in
Technical Specs Voltage
110 to 120 V | 220 to 240 V
Technical Specs Weight
35 lb
Technical Specs Width
12 in
