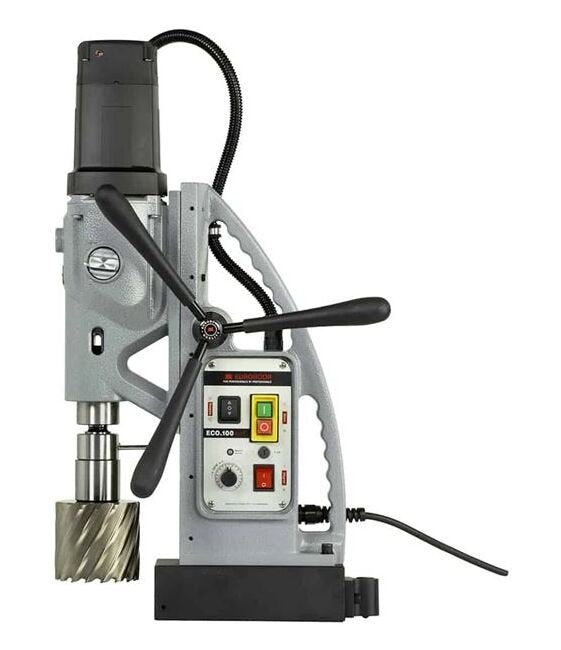

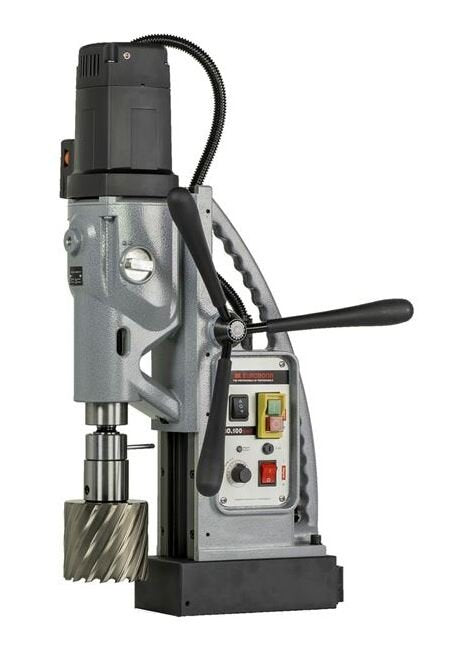

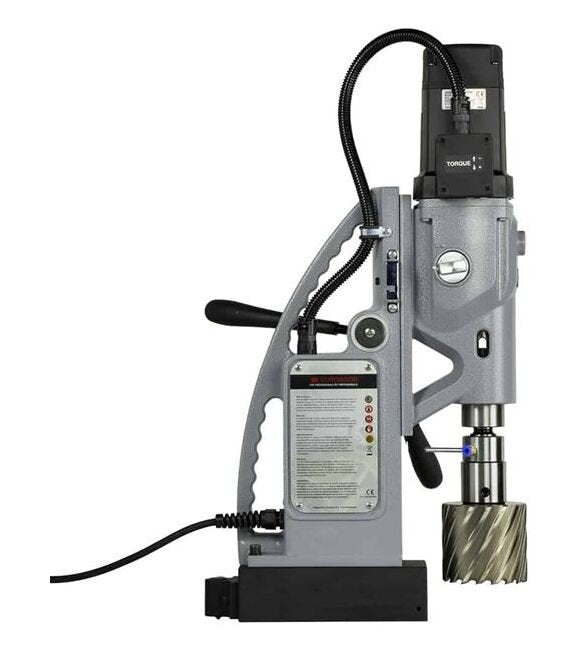

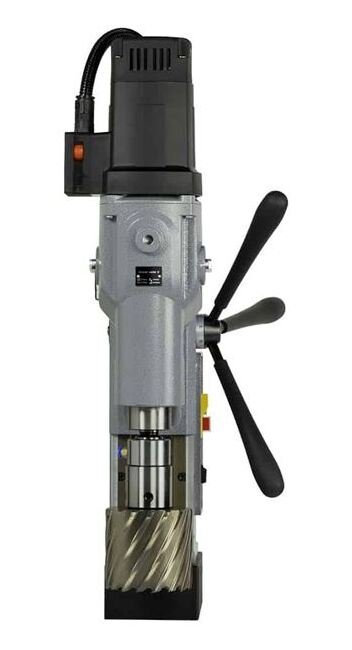

Euroboor ECO.100S+/T Magnetic Drilling Machine
Euroboor ECO.100S+/T Magnetic Drilling Machine
SKU:ELE-80e932
Powerful 1900W Euroboor ECO.100S+/T magnetic drilling machine with innovative safety features, ideal for industrial use.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Euroboor ECO.100S+/T Magnetic Drilling Machine
$1,499.99
Quantity: 1
Claim Your Seller Account
Euroboor ECO.100S+/T Magnetic Drilling Machine
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Euroboor ECO.100S+/T magnetic drilling machine is a high-performance solution for drilling holes up to 100mm. With its powerful 1900W motor, innovative electronics for enhanced safety, and a durable four-speed gearbox, this drill offers precision, efficiency, and longevity. It features advanced features like SensortecTemptecGyro-Tec for protection and efficiency, making it ideal for industrial use. With reduced maintenance costs and enhanced user safety, this machine is a reliable choice for professional drilling needs.
Product Specifications
Additional Features Additional Features
Four-speed oil lubricated gearboxParticularly suitable for tappingRight/left rotatingMorse Taper 3 spindle with integrated tool cooling and lubricationElectronic speed adjustmentTorque control on motor houseStrong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longerReduced risk of damaging machine, tools and workpiece and hurting operatorSuitable for use in areas and workplaces where power supply is of less qualityReduced risk of armature damageReduced risk of control unit(s) damageTimely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
Features Features

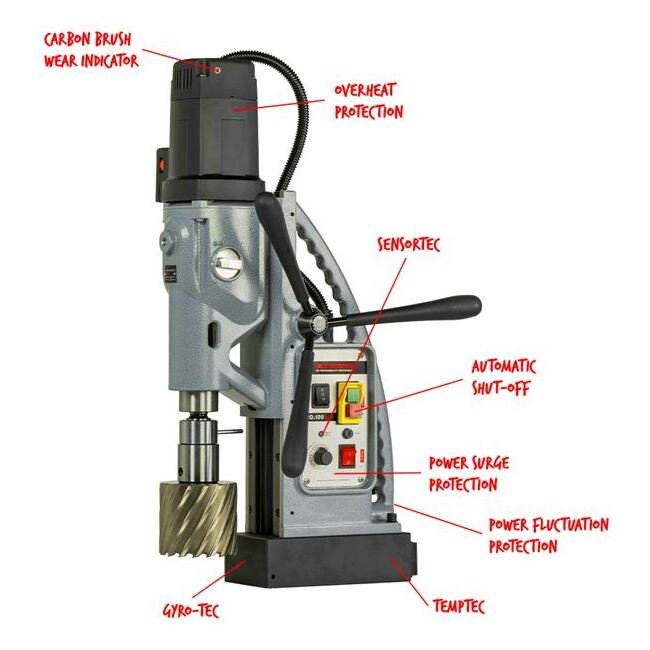

SensortecTemptecGyro-TecPower surge protectionPower fluctuation protectionCarbon brush wear indicator & automatic shut-offOverheat protection
Technical Specs Annular Cutting Diameter
12 to 100 mm | 7/16 to 4 in
Technical Specs Brands
Euroboor
Technical Specs Countersinking Diameter
10 to 105 mm | 3/8 to 4-1/8 in
Technical Specs Frequency
50 to 60 Hz | 60 Hz
Technical Specs Height
510 to 710 mm | 20-1/16 to 27-15/16 in
Technical Specs Length
365 mm | 14-3/8 in
Technical Specs Magnetic Force
3000 kg | 6615 lb
Technical Specs Magnet Height
64 mm | 2-1/2 in
Technical Specs Magnet Length
220 mm | 8-11/16 in
Technical Specs Magnet Width
110 mm | 4-5/16 in
Technical Specs Motor Power
1900 W | 17.3 A
Technical Specs Mt3 Weldon Spindle
19.05 mm | 3/4 in
Technical Specs Speed Load 1900 Watt W 173 Ampere A
152 rpm | 270 rpm | 480 rpm | 85 rpm
Technical Specs Speed No Load
140 to 400 rpm | 220 to 620 rpm | 42 to 110 rpm | 65 to 190 rpm
Technical Specs Stroke
260 mm | 10-1/4 in
Technical Specs Threading
M3 to M30
Technical Specs Threading Diameter
1/8 to 1-3/16 in
Technical Specs Total Power
2050 W | 18.6 A
Technical Specs Twist Drilling Diameter
1 to 31.75 mm | 1/16 to 1-1/4 in
Technical Specs Voltage
110 to 120 V | 220 to 240 V
Technical Specs Weight
27.8 kg | 61.3 lb
Technical Specs Width
310 mm | 12-3/16 in
