Euroboor ECO.60S Magnetic Drilling Machine
Euroboor ECO.60S Magnetic Drilling Machine
SKU:ELE-33578a
Euroboor ECO.60S: Power and precision for efficient drilling up to Ø60mm. 2-speed gearbox for versatile applications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Euroboor ECO.60S Magnetic Drilling Machine
$1,399.99
Quantity: 1
Claim Your Seller Account
Euroboor ECO.60S Magnetic Drilling Machine
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

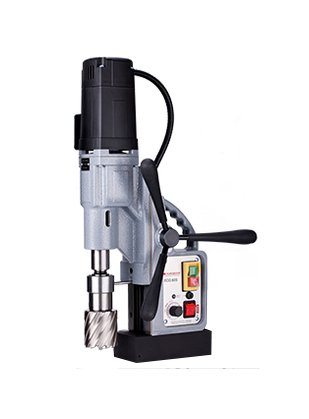

The Euroboor ECO.60S Magnetic Drilling Machine is a reliable tool designed for precision and efficiency. With a powerful 1600W motor and annular cutting capacity of 12 to 60 mm, it allows for easy drilling of various materials up to Ø60mm. The optimized slide and rail construction, integrated oil bath gearbox, Morse Taper 3 spindle, and practical long stroke ensure enhanced drilling accuracy and durability. Equipped with a 2-speed gearbox and electronic speed adjustment, this drill press offers versatility for different applications. Ideal for institutional buyers requiring high-performance tools that meet stringent standards.
Product Specifications
Features Features

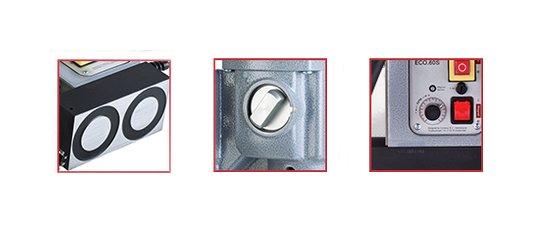

Optimized slide & rail constructionIntegrated oil bath gearboxMorse Taper 3 spindlePractical long stroke2-speed gearboxElectronic speed adjustment
Technical Specs Annular Cutting Diameter
12 to 60 mm
Technical Specs Brands
Euroboor
Technical Specs Countersinking Diameter
10 to 65 mm
Technical Specs Frequency
50 to 50 Hz | 50 to 60 Hz
Technical Specs Height
445 to 622 mm
Technical Specs Length
320 mm
Technical Specs Magnetic Force
1850 kg
Technical Specs Magnet Height
49 mm
Technical Specs Magnet Length
168 mm
Technical Specs Magnet Width
84 mm
Technical Specs Motor Power
1600 W
Technical Specs Mt3 Weldon Spindle
19.05 mm
Technical Specs Speed No Load I
275 per min | 60 per min
Technical Specs Speed No Load Ii
100 per min | 500 per min
Technical Specs Stroke
170 mm
Technical Specs Total Power
1700 W
Technical Specs Twist Drilling Diameter
1 to 23 mm
Technical Specs Voltage
110 to 220 V | 220 to 240 V
Technical Specs Weight
13 kg
Technical Specs Width
200 mm
