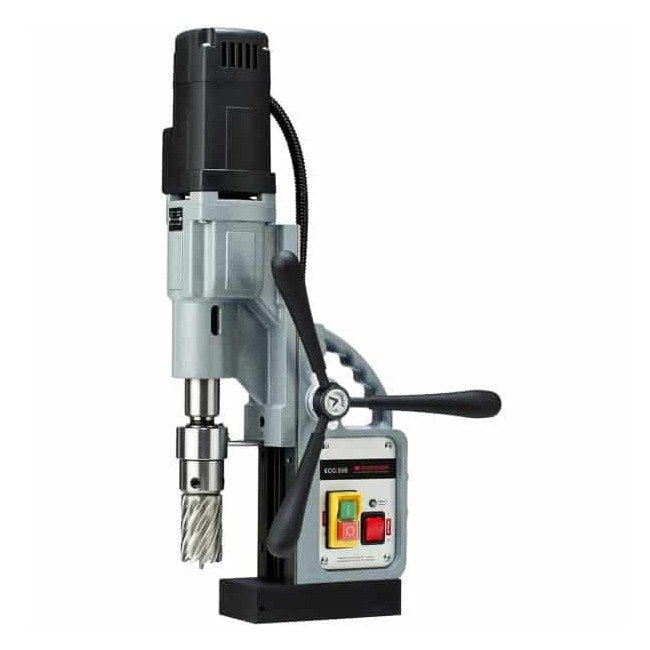

Euroboor Magnetic Drill Press
Euroboor Magnetic Drill Press
SKU:ELE-cc9999
Experience precision and power with the Euroboor Magnetic Drill Press. Ideal for industrial and institutional applications.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
Euroboor Magnetic Drill Press
$1,199.99
Quantity: 1
Claim Your Seller Account
Euroboor Magnetic Drill Press
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Euroboor Magnetic Drill Press is a precision-engineered electromagnetic drilling machine designed for industrial and institutional applications. With a robust 1250W motor and high-quality components, this drill press offers superior performance and accuracy. Features include a dual-speed gearbox, integrated tool cooling and lubrication, and a CNC-machined magnet for a strong magnetic force of 1700 kg. The height adjustment mechanism ensures precise drilling every time, making it ideal for metalworking, construction, and manufacturing environments.
Product Specifications
Features Features
High accuracy capstan hubMT 3 spindle with integrated tool cooling and lubricationIntegrated slideTwo-speed oil lubricated gearboxHigh precision height adjustmentStrong dual coil CNC machined magnet
Technical Specs Annular Cutting Diameter
12 to 50 mm
Technical Specs Brands
Euroboor
Technical Specs Countersinking Diameter
10 to 55 mm
Technical Specs Frequency
50 to 60 Hz | 60 Hz
Technical Specs Height
445 to 615 mm
Technical Specs Length
320 mm
Technical Specs Magnetic Force
1700 kg
Technical Specs Magnet Height
42 mm
Technical Specs Magnet Length
160 mm
Technical Specs Magnet Width
80 mm
Technical Specs Motor Power
1250 W
Technical Specs Mt3 Weldon Spindle
19.05 mm
Technical Specs Speed Load 1250 W
235 rpm | 415 rpm
Technical Specs Speed No Load
315 rpm | 690 rpm
Technical Specs Stroke
170 mm
Technical Specs Total Power
1300 A
Technical Specs Twist Drilling Diameter
1 to 23 mm
Technical Specs Voltage
110 to 220 V | 220 to 240 V
Technical Specs Weight
11.2 kg
Technical Specs Width
200 mm
