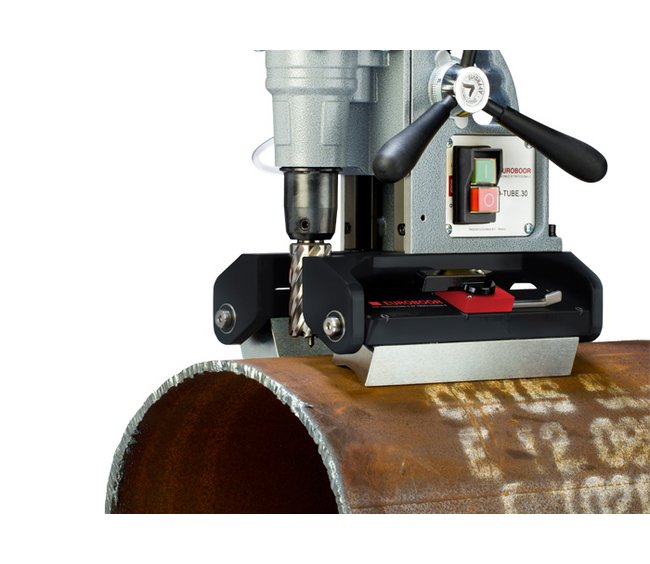

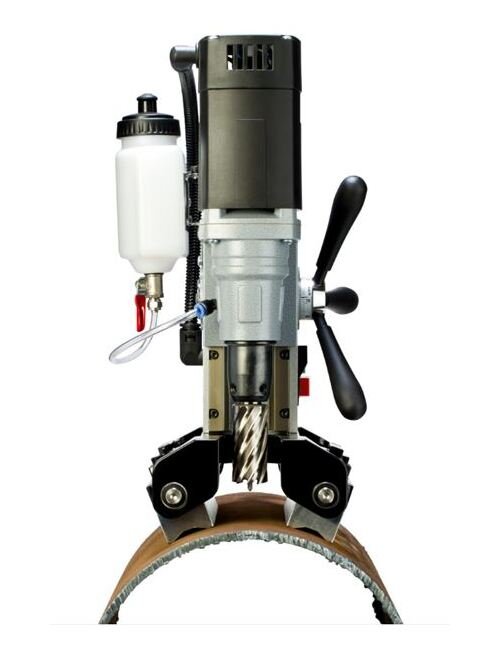

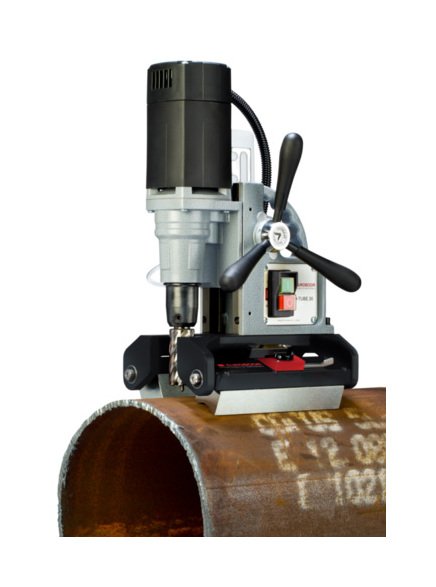

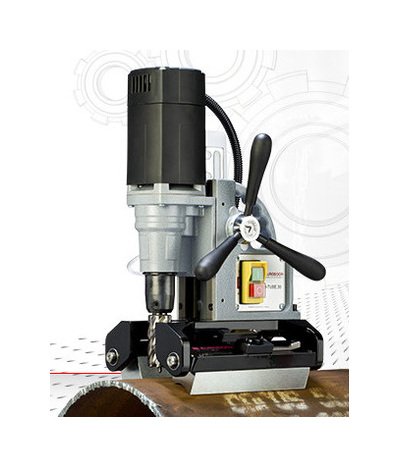

The Euroboor Magnetic Pipe Drilling Machine, ECO-TUBE.30, features patented shallow-field magnetic technology for a strong grip on steel as thin as 1/8''. With a patent-pending base that automatically adjusts to any pipe diameter of 3'' and larger, this machine is designed for efficiency and safety. The 8.2 A motor power allows for quick and easy hole cutting between 1/2'' and 1 3/16''. No electricity is required for the magnets, ensuring uninterrupted operation even in case of power loss. Its stable wide stance, unique flexible features for various pipe sizes, and direct spindle drive make it a versatile and reliable tool for pipe drilling applications.
Product Specifications
Features Features
No electricity required for magnetic baseUnique flexible features for pipes of various sizesTwo separate magnets which allows the machine to swing away for hole inspection & debris removal without losing positionNo special attachments needed to accommodate flat or curved surfacesHighly stable wide stanceDirect spindle driveEasy to handle
Technical Specs Annular Cutters Diameter
1/2-13/16 in
Technical Specs Brands
Euroboor
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
12-13/16 to 16-3/8 in
Technical Specs Length
10-13/16 in
Technical Specs Magnetic Force
1169 lb
Technical Specs Magnet Height
3-1/4 in
Technical Specs Magnet Length
7-3/8 in
Technical Specs Magnet Width
6-1/2 in
Technical Specs Motor Power
8.2 A
Technical Specs Speed Load 900 W
400 rpm
Technical Specs Speed No Load
775 rpm
Technical Specs Stroke
39/16 in
Technical Specs Total Power
6 A | 8 A
Technical Specs Twist Drills Diameter
1/16-1/2 in
Technical Specs Voltage
110 to 120 V
Technical Specs Weight
24.2 lb
Technical Specs Weldon Spindle
3/4 in
Technical Specs Width
7-1/4 in
