Euroboor MT3 Magnetic Drilling Machine for Tapping & Threading
Euroboor MT3 Magnetic Drilling Machine for Tapping & Threading
SKU:ELE-4935cc
Powerful Euroboor MT3 Magnetic Drilling Machine for precise tapping & threading operations.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Euroboor MT3 Magnetic Drilling Machine for Tapping & Threading
$1,899.99
Quantity: 1
Claim Your Seller Account
Euroboor MT3 Magnetic Drilling Machine for Tapping & Threading
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

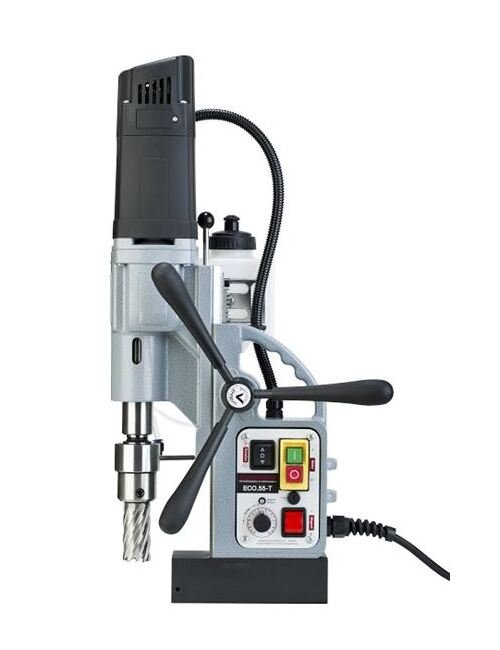

The Euroboor MT3 Magnetic Drilling Machine is engineered for benchmark performance, stability, and durability. With an MT3 Weldon spindle, it offers annular cutting up to 55mm, countersinking up to 60mm, and threading from M3 to M20. Featuring a powerful 1600W motor and a magnetic force of 1850kg, this machine ensures precise and efficient drilling operations. Its integrated oil bath gearbox, Morse Taper 3 spindle, and external access to carbon brushes enhance usability and maintenance. The digital read-out and smart restart functionality add convenience and safety to your drilling tasks, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Features Features
High precision slide & rail constructionIntegrated oil bath gearboxMorse Taper 3 spindleExternal access to carbon brushesDigital read-outSmart Restart
Technical Specs Annular Cutting Diameter
12 to 55 mm | 1/2 to 2-3/16 in
Technical Specs Countersinking Diameter
10 to 60 mm | 3/8 to 1-9/16 in
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
490 to 660 mm | 19-5/16 in
Technical Specs Length
320 mm | 12-5/8 in
Technical Specs Magnetic Force
1850 kg | 4100 lb
Technical Specs Magnet Height
49 mm | 1-7/8 in
Technical Specs Magnet Length
168 mm | 6-11/16 in
Technical Specs Magnet Width
84 mm | 3-3/8 in
Technical Specs Motor Power
1600 W | 14.5 A
Technical Specs Mt3 Weldon Spindle
3/4 in
Technical Specs Speed No Load I
275 per min
Technical Specs Speed No Load Ii
500 per min
Technical Specs Stroke
170 mm | 6-11/16 in
Technical Specs Threading
M3 - M20 | 1/2 to 13/16 in
Technical Specs Total Power
1700 W | 15.5 A
Technical Specs Twist Drills Diameter
1/2 to 15/16 in | 1 to 23 mm
Technical Specs Voltage
110 to 120 V | 220 to 240 V
Technical Specs Weight
13.75 kg | 30 lb
Technical Specs Width
200 mm | 7-7/8 in
