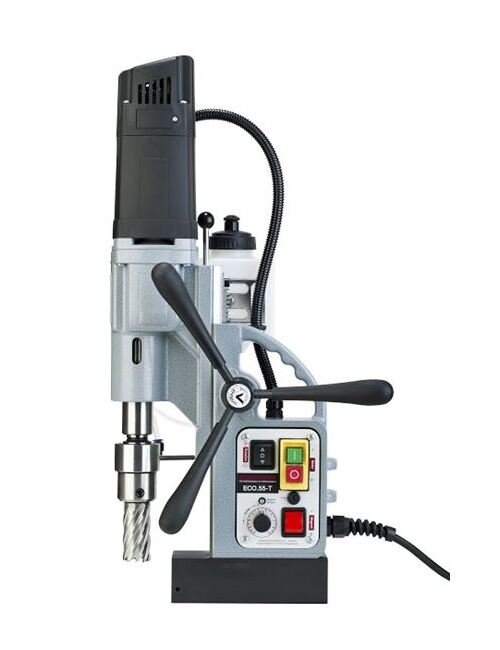

Euroboor MT3 Spindle Magnetic Drilling Machine
Euroboor MT3 Spindle Magnetic Drilling Machine
SKU:ELE-a9c802
Powerful Euroboor Magnetic Drilling Machine with MT3 Spindle for precise drilling tasks. Featuring 1600W motor, digital read-out & high magnetic force for industrial use.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
Euroboor MT3 Spindle Magnetic Drilling Machine
$1,099.99
Quantity: 1
Claim Your Seller Account
Euroboor MT3 Spindle Magnetic Drilling Machine
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Euroboor Magnetic Drilling Machine with MT3 Spindle from the ECO.55 - T Series offers unparalleled stability, durability, and cutting performance. Engineered with precision, this machine features a high-precision slide & rail construction, integrated oil bath gearbox, Morse Taper 3 spindle, and external access to carbon brushes. It boasts a powerful 1600W motor, digital read-out, and smart restart functionality, making it ideal for efficient and reliable drilling tasks. Perfect for industrial, construction, and government applications, this drill press ensures optimal power and performance with a magnetic force of 1850kg and a wide range of compatible annular cutters and twist drills.
Product Specifications
Features Features
High precision slide & rail constructionIntegrated oil bath gearboxMorse Taper 3 spindleExternal access to carbon brushesDigital read-outSmart Restart
Technical Specs Annular Cutters Diameter
1/2 to 2-3/16 in | 12 to 55 mm
Technical Specs Brands
Euroboor
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
490 to 660 mm | 19-5/16 in
Technical Specs Length
320 mm | 12-5/8 in
Technical Specs Magnetic Force
1850 kg | 4100 lb
Technical Specs Magnet Height
49 mm | 1-7/8 in
Technical Specs Magnet Length
168 mm | 6-11/16 in
Technical Specs Magnet Width
84 mm | 3-3/8 in
Technical Specs Motor Power
1600 W | 14.5 A
Technical Specs Mt3 Weldon Spindle
19.05 mm
Technical Specs Speed No Load I
275 per min
Technical Specs Speed No Load Ii
500 per min
Technical Specs Stroke
170 mm | 6-11/16 in
Technical Specs Total Power
1700 W | 15.5 A
Technical Specs Twist Drills Diameter
1/16 to 15/16 in | 1 to 23 mm
Technical Specs Voltage
110 to 120 V | 220 to 240 V
Technical Specs Weight
13.75 kg | 30 lb
Technical Specs Width
200 mm | 7-7/8 in
