Euroboor Swivel Base Magnetic Drilling Machine
Euroboor Swivel Base Magnetic Drilling Machine
SKU:ELE-fe56e7
Enhance productivity in industrial drilling with the Euroboor Swivel Base Machine's precision and advanced safety features.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Euroboor Swivel Base Magnetic Drilling Machine
$1,899.99
Quantity: 1
Claim Your Seller Account
Euroboor Swivel Base Magnetic Drilling Machine
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

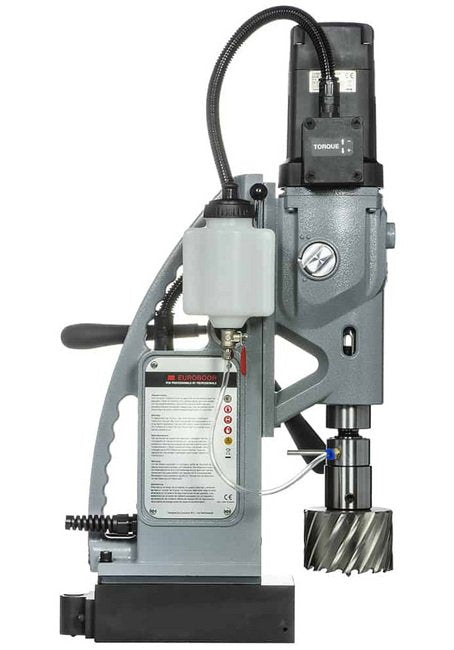

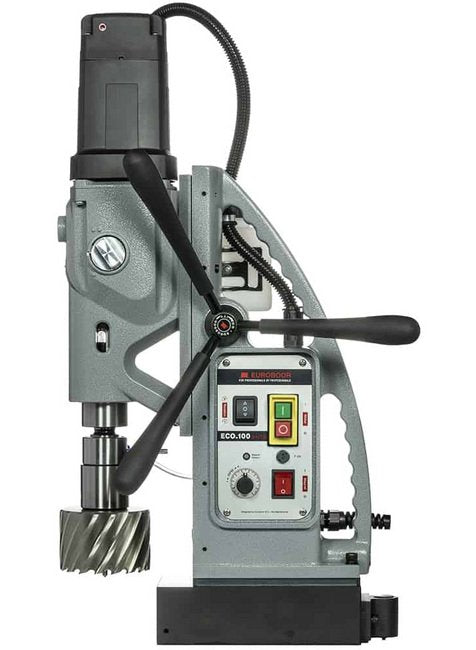

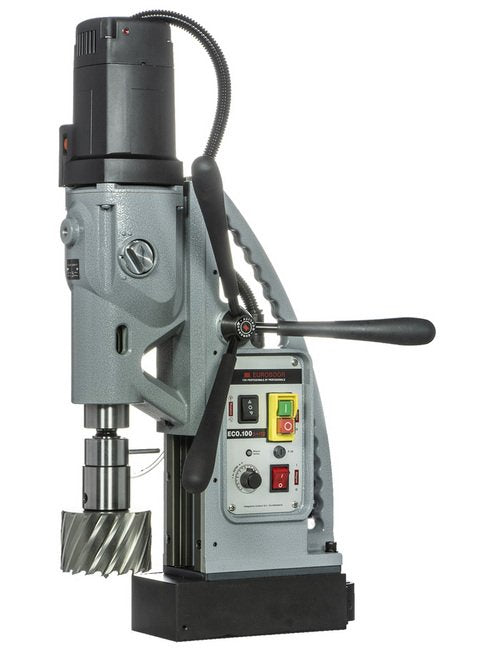

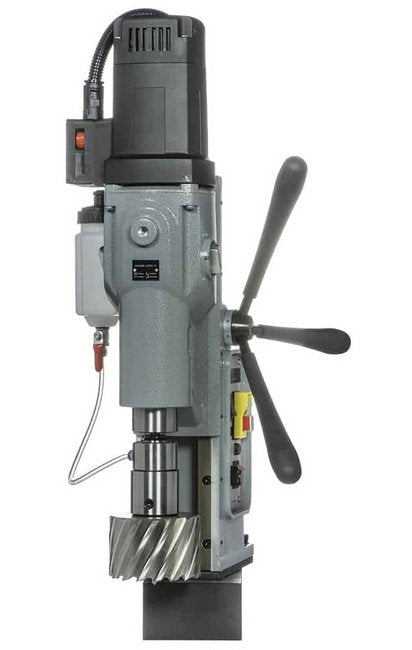

The Euroboor Swivel Base Magnetic Drilling Machine is a versatile tool designed for precision drilling in industrial settings. With a unique 30-degree swivel base, it allows for exceptional maneuverability, while the Morse Taper 3 spindle and four-speed oil-lubricated gearbox ensure efficient performance. This machine offers advanced safety features like SensortecTemptecGyro-Tec, overheat protection, and carbon brush wear indicator with automatic shut-off. It meets strict quality and durability standards, making it ideal for institutions seeking reliability and longevity in their equipment.
Product Specifications
Additional Features Additional Features
Precise positioning swivel base, rotate the machine 30Ë both ways and slide 15-20 mm forward and backwardsFour-speed oil lubricated gearboxParticularly suitable for tappingMorse Taper 3 spindle with integrated tool cooling and lubricationRight/left rotatingElectronic speed adjustmentTorque control on motor houseStrong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longerReduced risk of damaging machine, tools and workpiece and hurting operatorSuitable for use in areas and workplaces where power supply is of less qualityReduced risk of armature damageReduced risk of control unit(s) damageTimely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
Features Features
SensortecTemptecGyro-TecPower surge protectionPower fluctuation protectionCarbon brush wear indicator & automatic shut-offOverheat protection
Technical Specs Annular Cutting Diameter
12 to 100 mm | 7/16 to 4 in
Technical Specs Brands
Euroboor
Technical Specs Countersinking Diameter
10 to 105 mm | 3/8 to 4-1/8 in
Technical Specs Frequency
50 to 60 Hz | 60 Hz

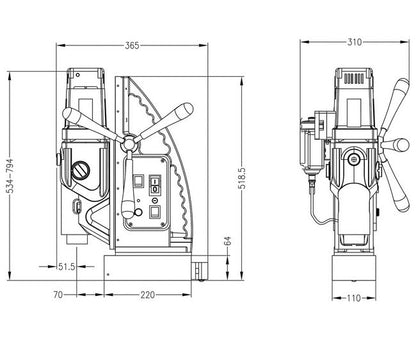

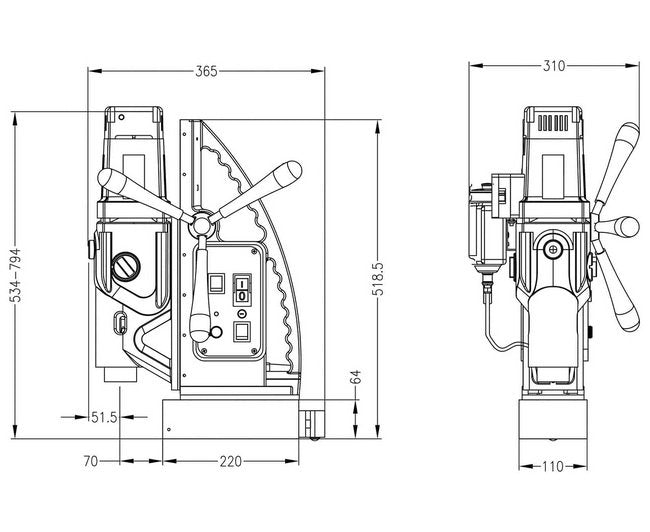

Technical Specs Height
510 to 710 mm | 20-1/16 to 27-15/16 in
Technical Specs Length
365 mm | 14-3/8 in
Technical Specs Magnetic Force
3000 kg | 6615 lb
Technical Specs Magnet Height
64 mm | 2-1/2 in
Technical Specs Magnet Length
220 mm | 8-11/16 in
Technical Specs Magnet Width
110 mm | 4-5/16 in
Technical Specs Motor Power
1900 W | 17.3 A
Technical Specs Mt3 Weldon Spindle
19.05 mm | 3/4 in
Technical Specs Speed Load 1900 Watt W 173 Ampere A
125 rpm | 270 rpm | 480 rpm | 85 rpm
Technical Specs Speed No Load
140 to 400 rpm | 220 to 620 rpm | 42 to 110 rpm | 65 to 190 rpm
Technical Specs Stroke
260 mm | 10-1/4 in
Technical Specs Threading
M3 to M30
Technical Specs Threading Diameter
1/8 to 1-3/16 in
Technical Specs Total Power
2050 W | 18.6 A
Technical Specs Twist Drilling Diameter
1 to 31.75 mm | 1/16 to 1-1/4 in
Technical Specs Voltage
110 to 120 V | 220 to 240 V
Technical Specs Weight
31 kg | 68.3 lb
Technical Specs Width
310 mm | 12-3/16 in
