European Style 2V-Die Quick Change Press Brake Tooling
European Style 2V-Die Quick Change Press Brake Tooling
SKU:QUI-62b98e
Achieve precision bends with our European Style Press Brake 2V-Die. Perfect for accurate V-opening adjustments.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
European Style 2V-Die Quick Change Press Brake Tooling
$289.99
Quantity: 1
Claim Your Seller Account
European Style 2V-Die Quick Change Press Brake Tooling
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

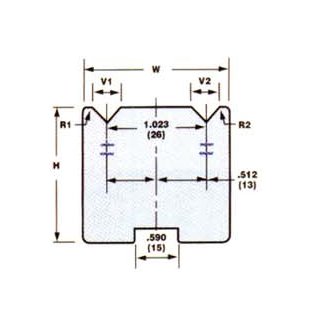

The Model 7103 European Style Press Brake Quick Change 2V-Die is a precision-engineered tool designed for seamless V-opening adjustments. With V1 measuring 0.551 in (14mm) and V2 at 0.709 in (18mm), this tool ensures accurate bending operations at a maximum force of 17 ton-force/ft (57 ton-force/m). The 90° angle of the V, combined with a 1.772 in (45mm) width and precise 0.5mm radii (R1 & R2), guarantees high-quality bends with consistency and efficiency. This 2V-Die stands at 46mm height, making it a versatile and reliable choice for press brake operations.
Product Specifications
Specifications Angle Of V
90 º
Specifications Height H
46 mm
Specifications Maximum Force Per Foot
17 ton-force/ft
Specifications Maximum Force Per Meter
57 ton-force/m
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.5 mm
Specifications V Opening V1
0.551 in | 14 mm
Specifications V Opening V2
0.709 in | 18 mm
Specifications Width W
1.772 in | 45 mm
