European Style Press Brake 2-V Die - Model 7432

Name: European Style Press Brake 2-V Die - Model 7432
Brand: Polyurethane Products Corp.
SKU: EUR-48bea9
Price: 799.99 USD
Availability: OutOfStock

SKU:EUR-48bea9

Precision European press brake 2-V die with 0.315 in to 0.472 in V-Openings, 21-70 ton-force, 1.969 in width. Compliant with Federal standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

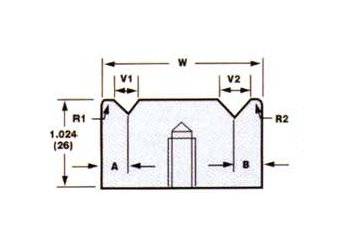

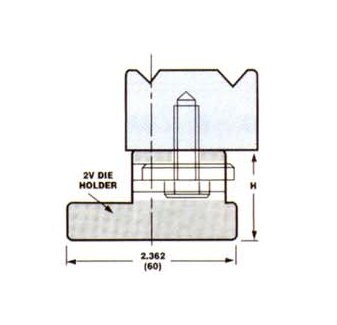

The Model 7432 Standard European Style Press Brake 2-V Die is expertly crafted for precision bending applications. With V-Openings of 0.315 in and 0.472 in, and a 90-degree angle of V, this die delivers consistent results. Capable of exerting a maximum force of 21 ton-force/ft or 70 ton-force/m, it ensures smooth operations. The 1.969-inch width enhances stability and accuracy. Designed to meet Federal procurement standards and FAR compliance factors, this die is ideal for government and institutional buyers requiring top-notch quality and reliability.

Product Specifications

Specifications Angle Of V

90 Âº

Specifications Maximum Force Per Foot

21 ton-force/ft

Specifications Maximum Force Per Meter

70 ton-force/m

Specifications V Opening V1

0.315 in | 8 mm

Specifications V Opening V2

0.472 in | 12 mm

Specifications Width W

1.969 in | 50 mm
