European Style Press Brake 2-V Die - Model 7440
European Style Press Brake 2-V Die - Model 7440
SKU:EUR-28a760
Achieve precision bends with the Model 7440 European Style Press Brake 2-V Die for efficient industrial operations.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
European Style Press Brake 2-V Die - Model 7440
$799.99
Quantity: 1
Claim Your Seller Account
European Style Press Brake 2-V Die - Model 7440
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

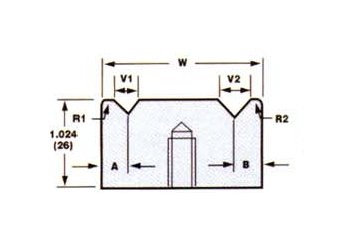

The Model 7440 Standard European Style Press Brake 2-V Die with Large Shoulder Radii is a precision-engineered tool designed for high-performance bending operations. With V-Openings of 6mm and 10mm, and a 90-degree V angle, this die delivers exceptional results. Capable of up to 24 ton-force/ft or 80 ton-force/m, and featuring a width of 55mm, it ensures efficient bending processes with precise control. This die is crafted to meet Federal/DoD procurement standards, GSA requirements, FAR compliance factors, and DLA standards, making it an ideal choice for government and institutional buyers.
Product Specifications
Specifications Angle Of V
90 º
Specifications Maximum Force Per Foot
24 ton-force/ft
Specifications Maximum Force Per Meter
80 ton-force/m
Specifications V Opening V1
0.236 in | 6 mm
Specifications V Opening V2
0.394 in | 10 mm
Specifications Width W
2.165 in | 55 mm
