European Style Press Brake 2-V Die - Model 7451
European Style Press Brake 2-V Die - Model 7451
SKU:EUR-d11509
Enhance bending precision and efficiency with the Model 7451 European Style Press Brake Die.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
European Style Press Brake 2-V Die - Model 7451
$1,499.99
Quantity: 1
Claim Your Seller Account
European Style Press Brake 2-V Die - Model 7451
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

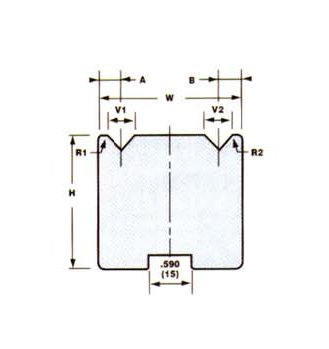

The Model 7451 Sectionalized European Style Press Brake 2-V Die is a precision-engineered tool designed for high-performance bending operations. With V-Openings of 0.236 in and 0.394 in, and a 90º angle of V, this die delivers consistent results. Capable of exerting maximum force per foot of 21 tons-force/ft and per meter of 70 tons-force/m, it ensures efficient metal bending. The 1.969-inch width and precise edge-to-center distances of 0.177 in and 0.256 in offer accuracy and control. This die is crafted to exceed industry standards, making it ideal for both consumer and institutional buyers.
Product Specifications
Specifications Angle Of V
90 º
Specifications Edge To Center To Distance A
0.177 in | 4.5 mm
Specifications Edge To Center To Distance B
0.256 in | 6.5 mm
Specifications Maximum Force Per Foot
21 ton-force/ft
Specifications Maximum Force Per Meter
70 ton-force/m
Specifications V Opening V1
0.236 in | 6 mm
Specifications V Opening V2
0.394 in | 10 mm
Specifications Width W
1.969 in | 50 mm
