European Style Press Brake 2-V Die with Large Shoulder Radii
European Style Press Brake 2-V Die with Large Shoulder Radii
SKU:EUR-2983e3
Efficiently bend metal with precision using the Model 7470 European Style Press Brake 2-V Die for seamless results in industrial applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
European Style Press Brake 2-V Die with Large Shoulder Radii
$8,999.99
Quantity: 1
Claim Your Seller Account
European Style Press Brake 2-V Die with Large Shoulder Radii
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

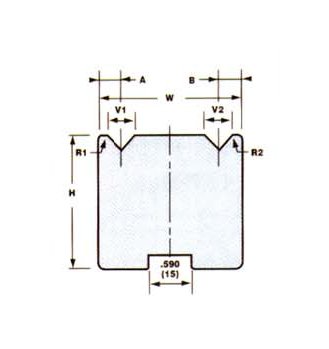

The Model 7470 Sectionalized European Style Press Brake 2-V Die with Large Shoulder Radii is engineered for precision and efficiency in metalworking. With V-Openings of 0.236 in and 0.294 in, capable of exerting a maximum force of 24 ton-force/ft, this brake offers unparalleled performance. Its 90-degree Angle of V ensures precise bends, while the 2.165 in width and optimal Edge to Center Distance guarantee accurate results. Ideal for industrial applications requiring high-quality bends.
Product Specifications
Specifications Angle Of V
90 º
Specifications Edge To Center To Distance A
0.236 in | 6 mm
Specifications Edge To Center To Distance B
0.394 in | 10 mm
Specifications Maximum Force Per Foot
24 ton-force/ft
Specifications Maximum Force Per Meter
80 ton-force/m
Specifications V Opening V1
0.236 in | 16 mm
Specifications V Opening V2
0.294 in | 25 mm
Specifications Width W
2.165 in | 55 mm
