European Style Press Brake 2-V Die with Large Shoulder Radii
European Style Press Brake 2-V Die with Large Shoulder Radii
SKU:EUR-e35d7a
Achieve precision bends with the European Style Press Brake 2-V Die, offering strength and accuracy for industrial metalworking.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
European Style Press Brake 2-V Die with Large Shoulder Radii
$5,499.99
Quantity: 1
Claim Your Seller Account
European Style Press Brake 2-V Die with Large Shoulder Radii
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

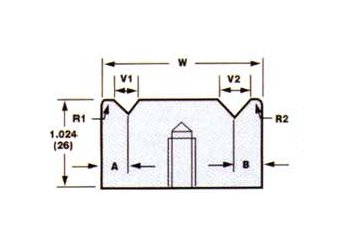

The Model 7441 European Style Press Brake 2-V Die with Large Shoulder Radii is a cutting-edge solution designed for precision metal bending tasks. With V-Openings of 0.472 in (12 mm) and 0.788 in (20 mm), and an Angle of V at 88º, it offers unparalleled accuracy. This standard die can withstand a Maximum Force of 30 ton-force/ft or 100 ton-force/m, making it suitable for heavy-duty industrial applications. The width of 2.165 in (55 mm) ensures compatibility with a wide range of press brakes, providing efficiency and reliability in every use.
Product Specifications
Specifications Angle Of V
88 º
Specifications Maximum Force Per Foot
30 ton-force/ft
Specifications Maximum Force Per Meter
100 ton-force/m
Specifications V Opening V1
0.472 in | 12 mm
Specifications V Opening V2
0.788 in | 20 mm
Specifications Width W
2.165 in | 55 mm
