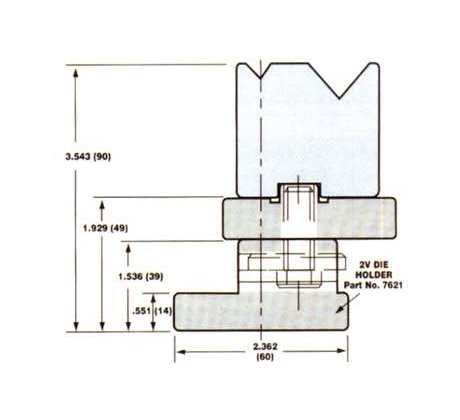

The Model 7320 European Style Press Brake Quick Change 2V-Die offers precision and versatility for various bending applications. With V-Openings of 0.236 in and 0.394 in, and a 30° Angle of V, this tool ensures accurate bends. Capable of withstanding forces up to 9 ton-force per foot and 30 ton-force per meter, it is ideal for industrial settings. The compact design with Width of 1.969 in and Height of 50 mm, combined with 1.0 mm Radius on both sides, enables efficient bending operations. Compliant with Federal/DoD procurement standards, FAR regulations, and industry certifications, this die kit is a reliable choice for government and institutional procurement.

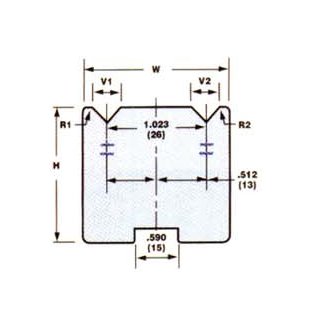

Product Specifications
Specifications Angle Of V
30 º
Specifications Height H
50 mm
Specifications Maximum Force Per Foot
9 ton-force/ft
Specifications Maximum Force Per Meter
30 ton-force/m
Specifications Radius R1
1.0 mm
Specifications Radius R2
1.0 mm
Specifications V Opening V1
0.236 in | 6 mm
Specifications V Opening V2
0.394 in | 10 mm
Specifications Width W
1.969 in | 50 mm
