The European Style Press Brake Quick Change 2V-Die Model 7105 offers precise bending capabilities with V-Openings of 0.472 in and 0.787 in, suitable for a wide range of applications. With an 88-degree V angle and maximum force per foot of 30 ton-force/ft, it ensures efficient bending operations. Its compact design featuring a width of 1.791 in and a height of 46 mm enhances versatility while maintaining durability. This die also meets Federal/DoD procurement standards and FAR compliance factors.

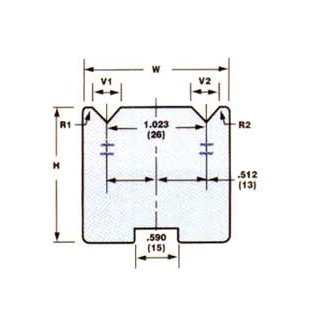

Product Specifications
Specifications Angle Of V
88 º
Specifications Height H
46 mm
Specifications Maximum Force Per Foot
30 ton-force/ft
Specifications Maximum Force Per Meter
100 ton-force/m
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.5 mm
Specifications V Opening V1
0.472 in | 12 mm
Specifications V Opening V2
0.787 in | 20 mm
Specifications Width W
1.791 in | 45.5 mm
