European Style Press Brake Quick Change 2V-Die Set

Name: European Style Press Brake Quick Change 2V-Die Set
Brand: Polyurethane Products Corp.
SKU: QUI-f10f2d
Price: 1299.99 USD
Availability: OutOfStock

SKU:QUI-f10f2d

High-quality European Style Press Brake 2V-Die Set for precise bending operations in industrial and government settings.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

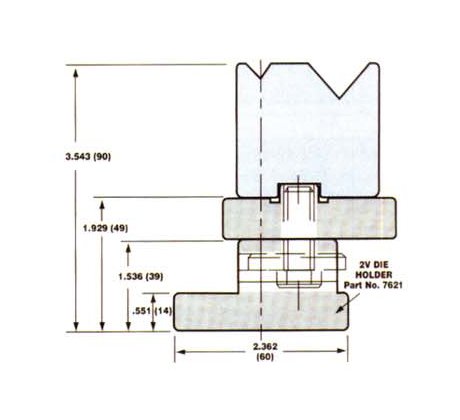

The Model 7211 European Style Press Brake Quick Change 2V-Die Set features precise V-Openings of 0.472 in and 0.788 in, with an Angle of V at 88º. Designed to deliver a Maximum Force per Foot of 30 ton-force/ft and per Meter of 100 ton-force/m, this die set ensures accurate bending operations. With a Width of 1.969 in, Radii of 3.0 mm and 4.0 mm, and a Height of 46 mm, it offers exceptional versatility and durability, catering to industrial and government procurement needs.

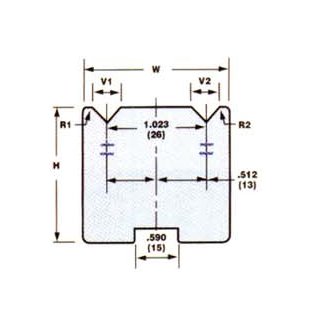

Product Specifications

Specifications Angle Of V

88 Âº

Specifications Height H

46 mm

Specifications Maximum Force Per Foot

30 ton-force/ft

Specifications Maximum Force Per Meter

100 ton-force/m

Specifications Radius R1

3.0 mm

Specifications Radius R2

4.0 mm

Specifications V Opening V1

0.472 in | 12 mm

Specifications V Opening V2

0.788 in | 20 mm

Specifications Width W

1.969 in | 50 mm

European Style Press Brake Quick Change 2V-Die Set
