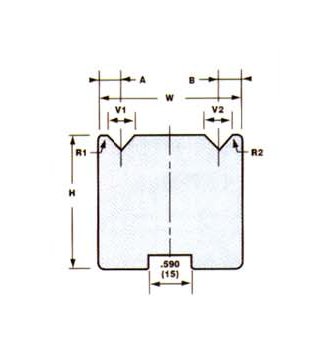

The Model 7452 European Style Press Brake Sectionalized 2-V Die is engineered for precision metal bending operations. With a V-Opening of 0.315 in (8 mm) and 0.472 in (12 mm), and a sturdy design capable of delivering up to 21 ton-force per foot (70 ton-force per meter), this press brake die ensures efficient and accurate bending. Its 90º Angle of V and compact Width of 1.969 in (50 mm) enable versatile applications. The Edge to Center to Distance settings of 0.217 in (5.5 mm) and 0.295 in (7.5 mm) offer enhanced control, making it ideal for industrial and institutional metalworking projects.
Product Specifications
Specifications Angle Of V
90 º
Specifications Edge To Center To Distance A
0.217 in | 5.5 mm
Specifications Edge To Center To Distance B
0.295 in | 7.5 mm
Specifications Maximum Force Per Foot
21 ton-force/ft
Specifications Maximum Force Per Meter
70 ton-force/m
Specifications V Opening V1
0.315 in | 8 mm
Specifications V Opening V2
0.472 in | 12 mm
Specifications Width W
1.969 in | 50 mm
