European Style Press Brake Sectionalized 2-V Die Set
European Style Press Brake Sectionalized 2-V Die Set
SKU:EUR-1e5914
Achieve precise bending with the Model 7471 European Style Press Brake 2-V Die Set, designed for accuracy and efficiency.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
European Style Press Brake Sectionalized 2-V Die Set
$2,999.99
Quantity: 1
Claim Your Seller Account
European Style Press Brake Sectionalized 2-V Die Set
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

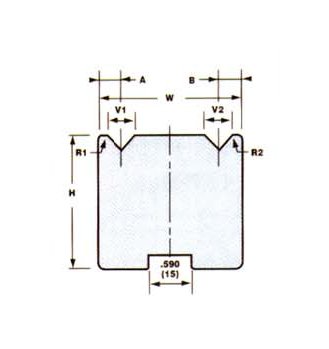

The Model 7471 European Style Press Brake 2-V Die Set boasts advanced specifications, featuring V-Openings of 0.472 in and 0.778 in, with an 88° Angle of V. With a Maximum Force of 30 ton-force per foot, this die set ensures precision bending with a Width of 2.165 in. Edge to Center distances of 0.394 in and 0.591 in allow for versatile applications, meeting the stringent standards of government and institutional procurement requirements.
Product Specifications
Specifications Angle Of V
88 º
Specifications Edge To Center To Distance A
0.394 in | 10 mm
Specifications Edge To Center To Distance B
0.591 in | 15 mm
Specifications Maximum Force Per Foot
30 ton-force/ft
Specifications Maximum Force Per Meter
100 ton-force/m
Specifications V Opening V1
0.472 in | 12 mm
Specifications V Opening V2
0.778 in | 20 mm
Specifications Width W
2.165 in | 55 mm
