European Style Sectionalized Press Brake 2-V Die
European Style Sectionalized Press Brake 2-V Die
SKU:EUR-ae7851
Achieve precision bending with the Model 7453 European Style Press Brake 2-V Die. Maximize efficiency and accuracy in metalworking applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
European Style Sectionalized Press Brake 2-V Die
$1,899.99
Quantity: 1
Claim Your Seller Account
European Style Sectionalized Press Brake 2-V Die
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 7453 European Style Sectionalized Press Brake 2-V Die is a precision-engineered tool designed for efficient metal bending operations. With V-Openings of 0.551 in and 0.709 in, and a maximum force capacity of 30 ton-force/ft, this press brake ensures precise and consistent bending results. Its 90-degree V angle and width of 1.969 in provide versatility for a variety of applications. The Edge to Center Distance specifications of 0.335 in and 0.413 in offer enhanced accuracy, making it ideal for industrial and institutional settings.

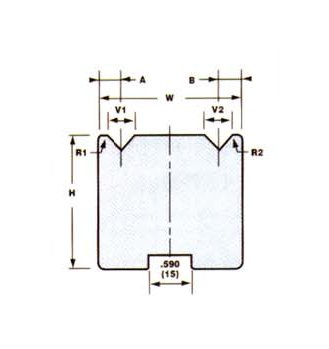

Product Specifications
Specifications Angle Of V
90 º
Specifications Edge To Center To Distance A
0.335 in | 8.5 mm
Specifications Edge To Center To Distance B
0.413 in | 10.5 mm
Specifications Maximum Force Per Foot
30 ton-force/ft
Specifications Maximum Force Per Meter
100 ton-force/m
Specifications V Opening V1
0.551 in | 14 mm
Specifications V Opening V2
0.709 in | 18 mm
Specifications Width W
1.969 in | 50 mm
