EuroPress Model 7106 Quick Change 2V-Die
EuroPress Model 7106 Quick Change 2V-Die
SKU:QUI-a9d34f
Achieve precision bends with the EuroPress Model 7106 Quick Change 2V-Die. Ideal for industrial metalworking applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
EuroPress Model 7106 Quick Change 2V-Die
$899.99
Quantity: 1
Claim Your Seller Account
EuroPress Model 7106 Quick Change 2V-Die
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

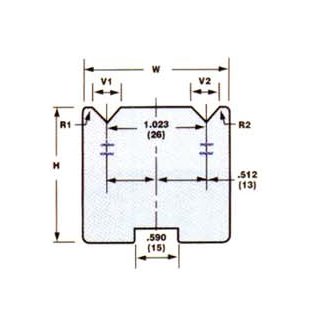

The EuroPress Model 7106 European Style Press Brake Quick Change 2V-Die is designed for precision bending operations. With V-Openings of 0.630 in and 0.984 in and an 88° Angle of V, this die ensures accurate and efficient metalworking. Capable of applying up to 21 ton-force per foot or 70 ton-force per meter, it offers exceptional performance. The 1.969-inch Width, 0.8mm Radius, and 46mm Height make it versatile for various applications, meeting the stringent requirements of industrial and government procurement standards.
Product Specifications
Specifications Angle Of V
88 º
Specifications Height H
46 mm
Specifications Maximum Force Per Foot
21 ton-force/ft
Specifications Maximum Force Per Meter
70 ton-force/m
Specifications Radius R1
0.8 mm
Specifications Radius R2
0.8 mm
Specifications V Opening V1
0.630 in | 16 mm
Specifications V Opening V2
0.984 in | 25 mm
Specifications Width W
1.969 in | 50 mm
