EuroVac I 10HP - 18" FS Vacuum System
EuroVac I 10HP - 18" FS Vacuum System
SKU:DUS-63dd82
EuroVac I 10HP - 18" FS Vacuum System: Powerful dust and fume extraction with advanced controls and superior filtration for industrial applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
EuroVac I 10HP - 18" FS Vacuum System
$2,599.99
Quantity: 1
Claim Your Seller Account
EuroVac I 10HP - 18" FS Vacuum System
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

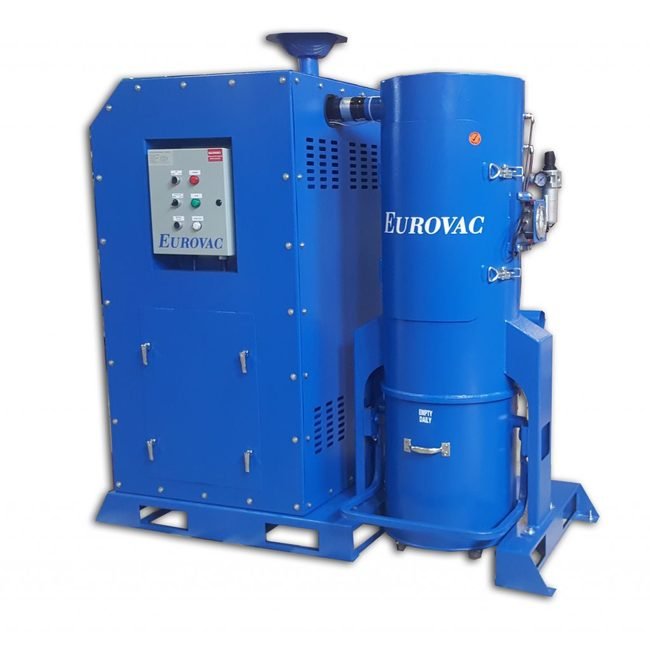

The EuroVac I 10HP - 18" FS Vacuum System is a robust stand mount system designed for superior dust and fume extraction in industrial settings. It comes pre-wired for seamless installation from the panel to the pump, featuring advanced controls like Overload Protection, Run Light, Hour Meter, and Automatic Filter Cleaning. With a powerful blower ensuring 20,000+ hours of continuous use, this system boasts exceptional filtration efficiency (99.93% at 3 microns) thanks to its cyclonic filter separator and polyester cartridge filter with automatic pulse jet cleaning. Equipped with a 20-gallon canister and operating at various voltages, this unit is ideal for a wide range of applications including welding, woodworking, aerospace, and more.
Product Specifications
Specifications Blowers
20,000+ hrs of continuous use
Specifications Canister
20 gal
Specifications Controls
On/Off, Overload Protection, Run Light, Hour Meter, 24v Step Down Transformer (ie: Control of remote switches), Automatic Filter Cleaning
Specifications Electrical
208-240, 460 and 575 volts. 3 phase, 60 hertz | 230/460v
Specifications Filtration
Cyclonic filter separator, after polyester cartridge filter (42 sq. ft. filter media) (99.93% efficient at 3 microns or larger) and final automatic pulse jet cleaning.
Specifications Includes
Silencer & cover for motorMagnahelic gauge (Indicates when pressure differential is too high and filters need replacement).
Specifications Note
Unit is skid mounted for easy transportation Key Benefits.Captures dangerous welding fumes before they enter the welder’s breathing zone.Ideal for mig, tig, arc and robotic welding.No lost production time moving largefume extraction arms every time the welder changes position.Source capture welding guns or weldingattachments only require 80-100 CFM or less each; eliminating the need for costly air makeup systems required with high volume systems.Several filter options are available, including combination cyclone separatorand polyester cartridge filters with automatic pulse jet cleaning Applications Industrial, Body Shop, Woodworking, Aerospace, Detail, Pharmaceutical, Boatbuilding, Transit, Military.
