Eurovalve EVBS DIN Butterfly Valve, 150mm, Cast Iron Lug Type
Eurovalve EVBS DIN Butterfly Valve, 150mm, Cast Iron Lug Type
SKU:VAL-247443
High-quality Eurovalve EVBS 150mm cast iron butterfly valve with DIN compliance and lever actuation for precise control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Eurovalve EVBS DIN Butterfly Valve, 150mm, Cast Iron Lug Type
$299.99
Quantity: 1
Claim Your Seller Account
Eurovalve EVBS DIN Butterfly Valve, 150mm, Cast Iron Lug Type
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve EVBS Lever Operated Butterfly Valve in cast iron is a high-quality option for industrial applications. With a sturdy construction and precise design, this valve offers reliable isolating and regulating functions. Compliant with DIN standards and featuring flange connections, this valve ensures seamless integration into existing systems. The lever actuation provides easy control, making it suitable for a range of operations.

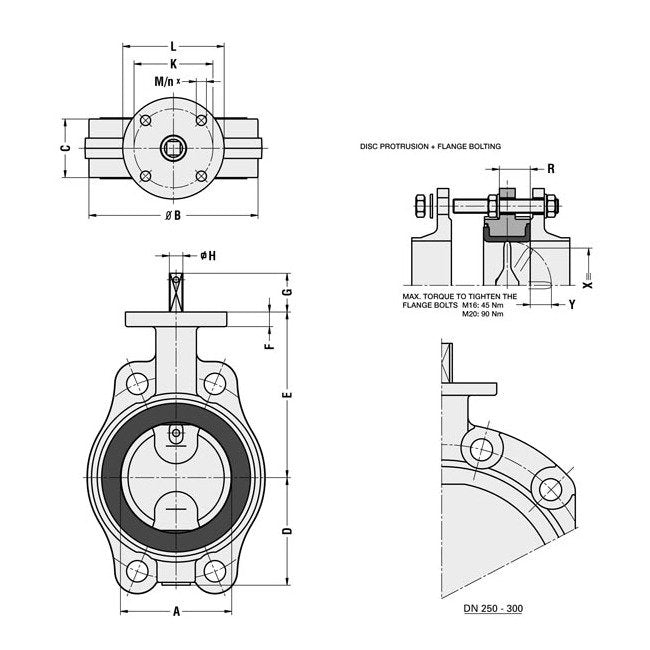

Product Specifications
Specifications A
150 mm
Specifications Actuation Possibilities
Lever
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
210 mm
Specifications C
56 mm
Specifications D
133 mm
Specifications E
180 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 10
Specifications R
39 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN150 - 6" | 150 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
9.5 kg
Specifications X
140 mm
Specifications Y
47 mm
