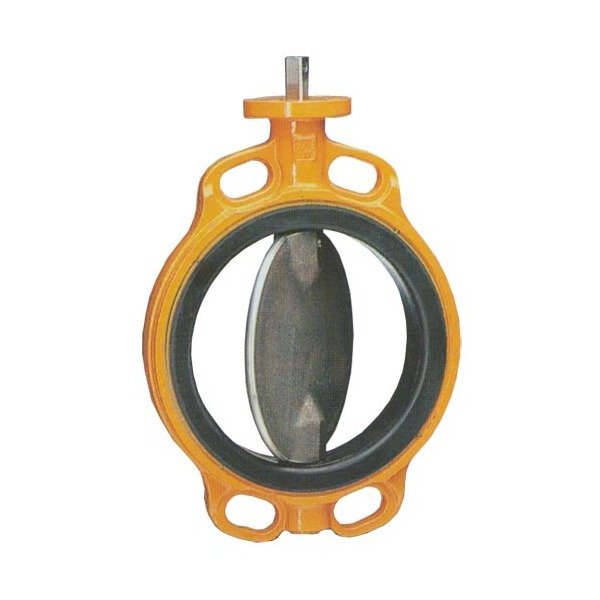

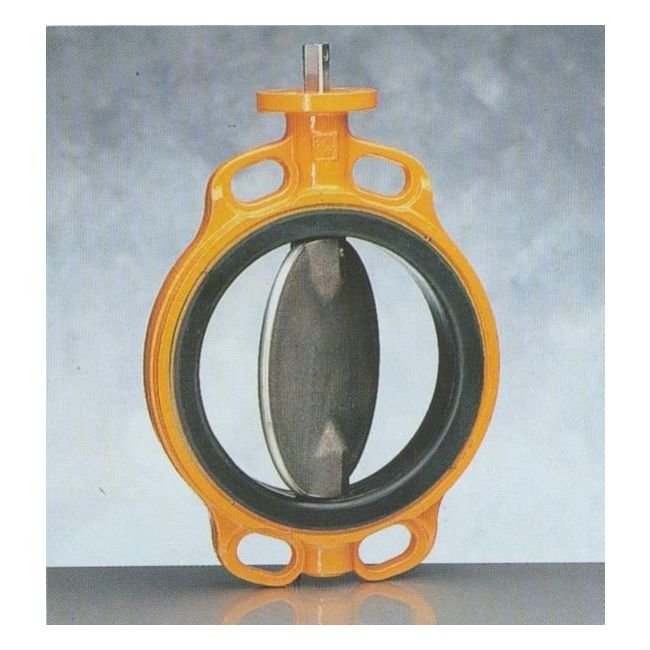

Eurovalve EVBS Gear-Operated Cast Iron Wafer Type Butterfly Valve
Eurovalve EVBS Gear-Operated Cast Iron Wafer Type Butterfly Valve
SKU:VAL-67a9a6
Reliable Eurovalve EVBS Gear-Operated Cast Iron Butterfly Valve for precise flow control in industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Eurovalve EVBS Gear-Operated Cast Iron Wafer Type Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
Eurovalve EVBS Gear-Operated Cast Iron Wafer Type Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve EVBS Gear-Operated Cast Iron Wafer Type Butterfly Valve in DN300 size is engineered for exceptional performance in isolating or regulating flows. With a sturdy cast iron body, stainless steel shaft, and NBR liner, this valve ensures durability and reliable sealing. Compliant with DIN standards and offering actuation possibilities with gear operations, this valve is suitable for various industrial applications requiring PN10/16 pressure ratings and precise flow control. Trusted by ABS, DNV, UL, and more, this valve is a versatile and robust solution for your fluid handling needs.

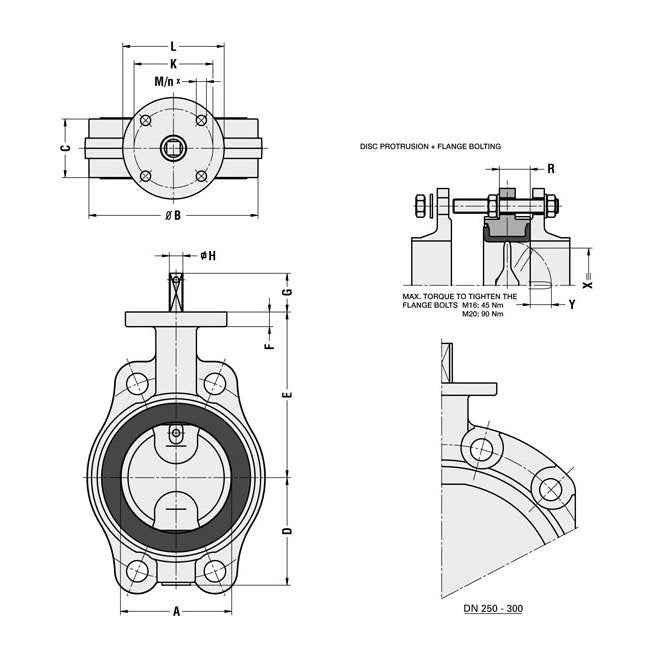

Product Specifications
Specifications A
300 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
371 mm
Specifications C
78 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10 | PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R
53 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
36.0 kg
Specifications X
290 mm
Specifications Y
111 mm
