Eurovalve EVFS DIN Butterfly Valve, DN300, Double Flanged Ductile Iron

Name: Eurovalve EVFS DIN Butterfly Valve, DN300, Double Flanged Ductile Iron
Brand: World Wide Metric, Inc.
SKU: VAL-f2a1fb
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-f2a1fb

Eurovalve EVFS Double Flanged DIN Butterfly Valve: DN300, PN16, Ductile Iron, Bare Shafted

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Eurovalve EVFS Double Flanged DIN Butterfly Valve in DN300 size is a robust solution for industrial fluid control, offering versatile operation as an isolating and regulating valve. Crafted from high-quality ductile iron with stainless steel shaft, this valve ensures durability and reliable performance under varying pressures. Compliant with DIN standards, it features EPDM liner for secure sealing. With options for bare shaft actuation and a range of pressure shut-off settings, this valve is ideal for applications requiring precision and strength.

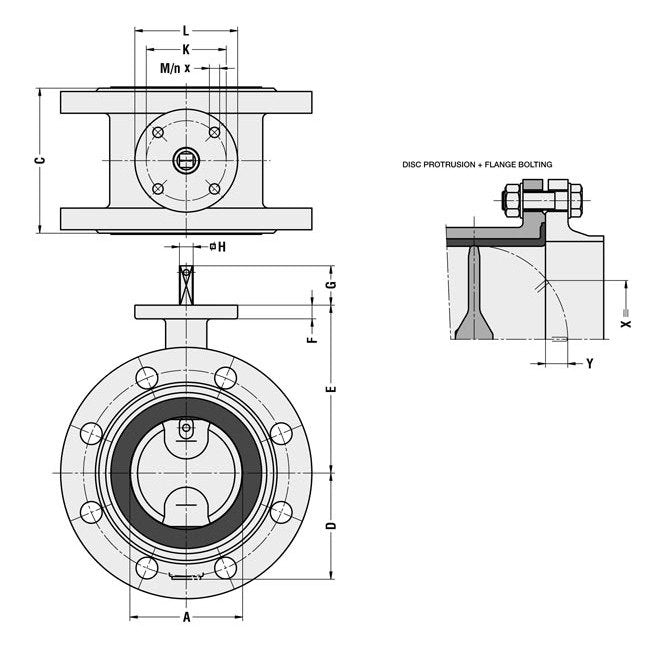

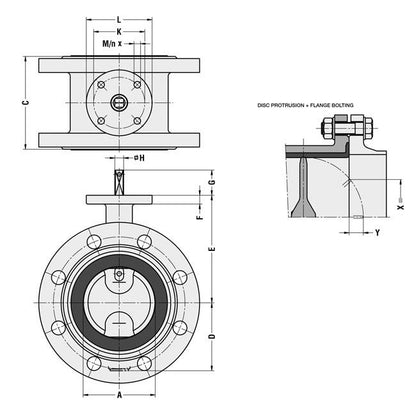

Product Specifications

Specifications A

300 mm

Specifications Actuation Possibilities

Bare

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Ductile Iron

Specifications C

178 mm

Specifications D

219 mm

Specifications E

270 mm

Specifications F

15 mm

Specifications Flange Connections

PN 16

Specifications G

45 mm

Specifications H Diameter

24 mm

Specifications Iso 5211

F10

Specifications K

102 mm

Specifications L

125 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM)

Specifications M Diameter

11 mm

Specifications N Number Of Holes

Specifications Shaft Material

Stainless Steel 1.4057

Specifications Size

DN300 - 12" | 300 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

65.0 kg

Specifications X

242 mm

Specifications Y

61 mm
