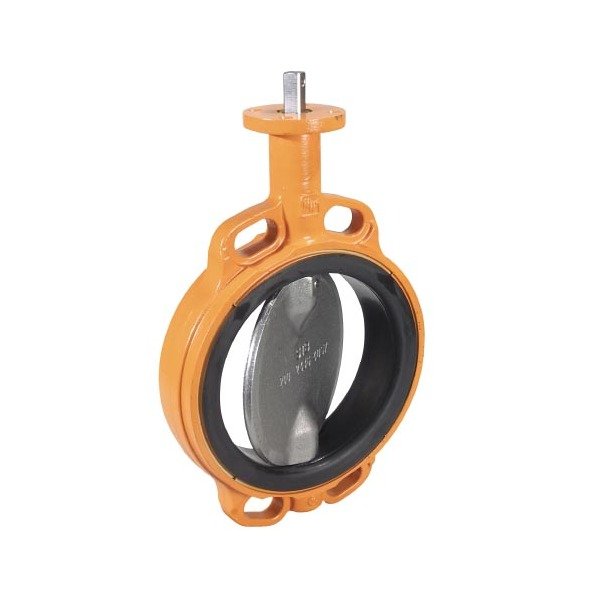

Eurovalve Series EVBLS Semi Lug Long Neck Butterfly Valve

Name: Eurovalve Series EVBLS Semi Lug Long Neck Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-9e72ff
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-9e72ff

High-quality Eurovalve Semi Lug Butterfly Valve with Long Neck for precise control and lasting durability.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Eurovalve Series EVBLS Semi Lug with Long Neck Valve combines precision engineering with durable materials. This butterfly valve features a semi-lug wafer design with a long neck for enhanced insulation. Meeting ISO standards for face-to-face dimensions and flange connections, it offers manual, electric, pneumatic, or hydraulic actuation options. With a range of sizes from DN50 to DN200 and design pressures up to 16 Bar, this valve ensures reliable performance in diverse applications. Choose from various body materials including Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel, and Bronze RG10, along with options for different disc, shaft, and liner materials.

Product Specifications

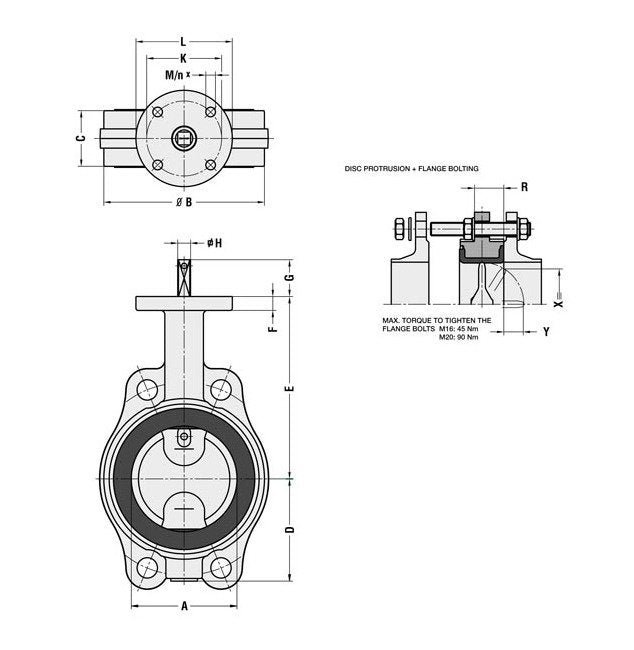

Specifications A

100 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

150 mm

Specifications C

52 mm

Specifications D

98 mm

Specifications E

189 mm

Specifications F

12 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

12 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

35 mm

Specifications Size

DN100 - 4"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

5.5 kg

Specifications X

86 mm

Specifications Y

24 mm
