Eurovalve Series EVBLS Semi Lug Long Neck Valve

Name: Eurovalve Series EVBLS Semi Lug Long Neck Valve
Brand: World Wide Metric, Inc.
SKU: VAL-9725c5
Price: 389.99 USD
Availability: OutOfStock

SKU:VAL-9725c5

Experience superior performance with the Eurovalve Series EVBLS Valve, offering flexibility and durability for diverse applications.

$389.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Eurovalve Series EVBLS Semi Lug Long Neck Valve offers exceptional performance and durability. Constructed with various material options including GGG40 Ductile Iron, Stainless Steel, and more, this valve ensures reliable operation under different pressures. With options for manual, electric, pneumatic, or hydraulic actuation, it provides versatility for various applications. Certified to meet ISO 5208 leakage standards and WRC, LRS, BV, RMRS type approvals, this valve guarantees bi-directional tight shut off and regulatory compliance.

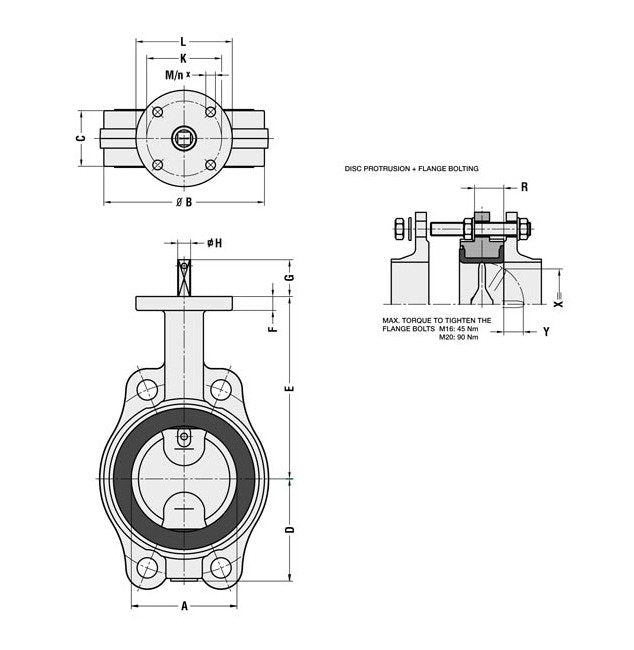

Product Specifications

Specifications A

50 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

BV | LRS | RMRS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

100 mm

Specifications C

43 mm

Specifications D

63 mm

Specifications E

152 mm

Specifications F

12 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

10 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

30 mm

Specifications Size

DN50 - 2"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

3.1 kg

Specifications X

25 mm

Specifications Y

4 mm

Eurovalve Series EVBLS Semi Lug Long Neck Valve
