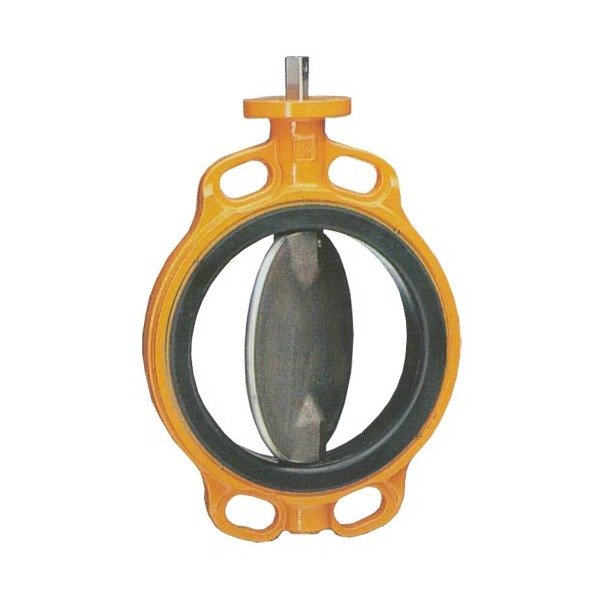

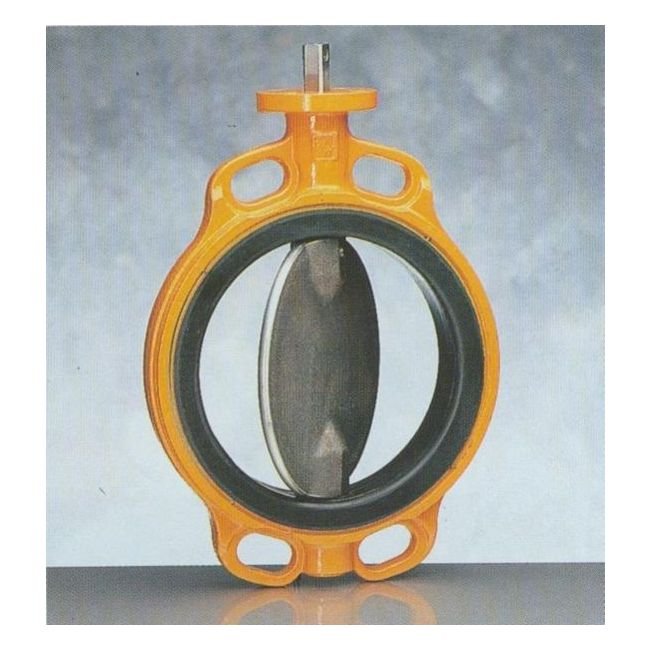

Eurovalve Series EVBS Cast Iron Butterfly Valve
Eurovalve Series EVBS Cast Iron Butterfly Valve
SKU:VAL-d2b484
Eurovalve Series EVBS Cast Iron Butterfly Valve, DN300, PN10/16, Bare Shafted, Isolating and Regulating Valve
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Eurovalve Series EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve Series EVBS Cast Iron Butterfly Valve is designed for reliable performance in industrial applications. With a DN300 size and PN10/16 pressure ratings, this valve offers exceptional shut-off pressure up to 16 bar. Constructed from high-quality materials including GG25 Cast Iron and Stainless Steel, this valve provides durability and corrosion resistance. Its bare shafted design allows for seamless actuation, making it suitable for isolating and regulating flow. Meeting DIN standards, this valve is approved by various entities like ABS, BV, and UL, ensuring compliance with industry regulations.
Product Specifications

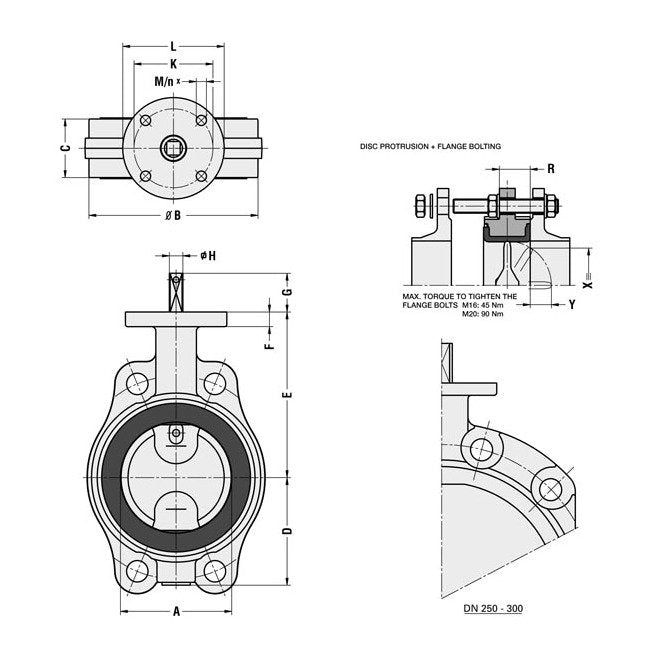

Specifications A
300 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
371 mm
Specifications C
78 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10 | PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R
53 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
36.0 kg
Specifications X
290 mm
Specifications Y
111 mm
