Eurovalve Series EVBS Cast Iron Butterfly Valve
Eurovalve Series EVBS Cast Iron Butterfly Valve
SKU:VAL-ac5c27
High-performance Eurovalve DN125 PN16 Cast Iron Butterfly Valve for industrial applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Eurovalve Series EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

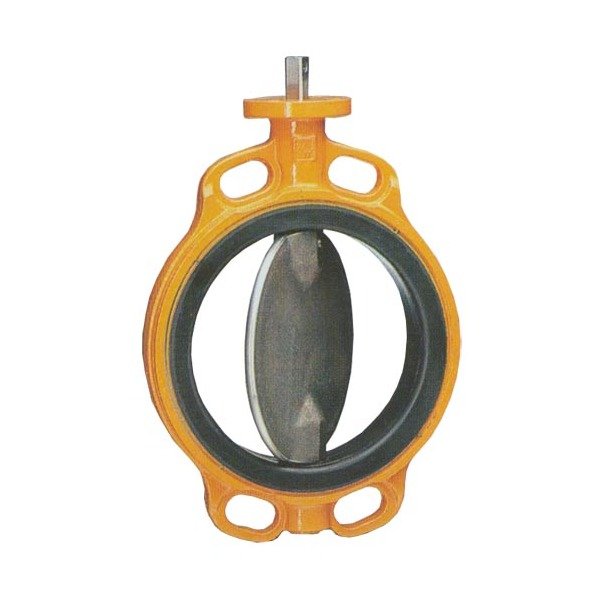

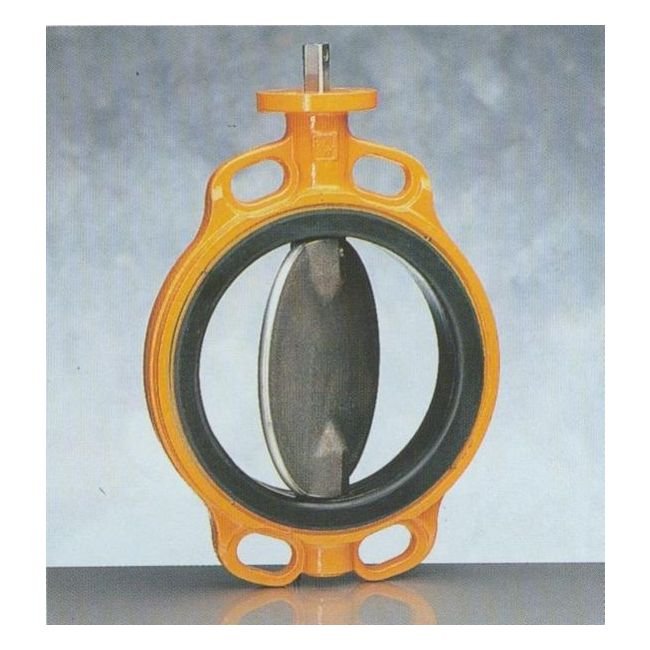

The Eurovalve Series EVBS Cast Iron Butterfly Valve is a high-performance semi lug wafer type valve designed for industrial applications. With a DN125 size and PN16 rating, this valve offers reliable isolation and regulation functions. Constructed from GG25 cast iron body material and stainless steel shaft material, it ensures durability and corrosion resistance. The valve features Nitrile Butadiene Rubber (NBR) liner material for enhanced sealing and is compliant with DIN standards. Ideal for government and institutional procurement due to its versatile actuation possibilities and multiple approvals including ABS, DNV, UL, and more.
Product Specifications

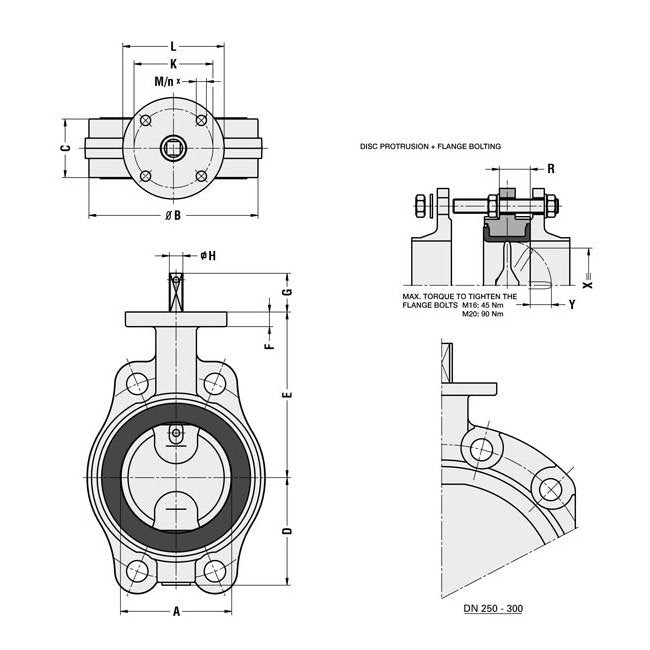

Specifications A
125 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
182 mm
Specifications C
56 mm
Specifications D
109 mm
Specifications E
160 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
12 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
39 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN125 - 5" | 125 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
7.0 kg
Specifications X
112 mm
Specifications Y
35 mm
