Eurovalve Series EVBS Ductile Iron Semi Lug Wafer Butterfly Valve
Eurovalve Series EVBS Ductile Iron Semi Lug Wafer Butterfly Valve
SKU:VAL-c72180
Eurovalve Series EVBS DN300 Ductile Iron Semi Lug Wafer Butterfly Valve for reliable isolating and regulating applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Eurovalve Series EVBS Ductile Iron Semi Lug Wafer Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVBS Ductile Iron Semi Lug Wafer Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

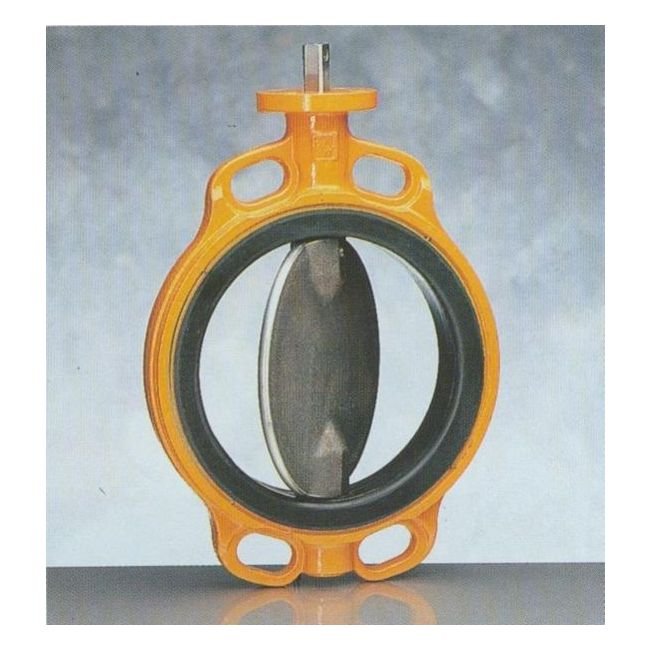

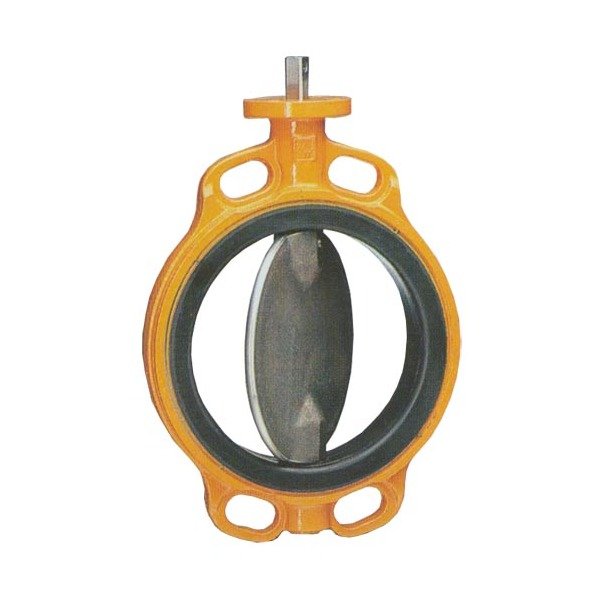

The Eurovalve Series EVBS Bare Shafted Ductile Iron Semi Lug Wafer Butterfly Valve in DN300 size combines robust construction with precise engineering for reliable performance in a variety of applications. With a pressure rating of PN10/16, this valve offers versatile operation as an isolating or regulating valve. Crafted from high-quality materials including ductile iron body and aluminum bronze shaft, this valve ensures durability and efficient functionality. The EPDM liner provides a tight seal, while the ISO 5211 mounting pad allows for easy actuation. Compliant with DIN standards and approved by major regulatory bodies, this valve is ideal for both consumer and institutional buyers seeking quality and performance.
Product Specifications

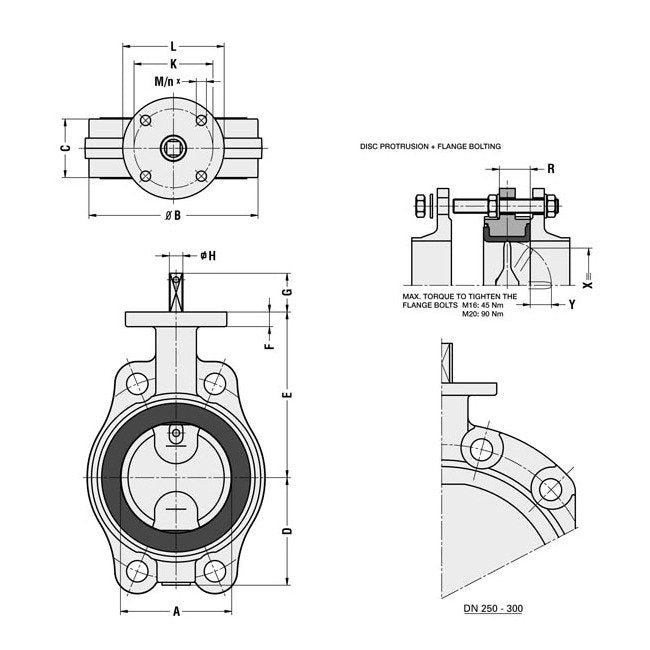

Specifications A
300 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
371 mm
Specifications C
78 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10 | PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications R
53 mm
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
36.0 kg
Specifications X
290 mm
Specifications Y
111 mm
