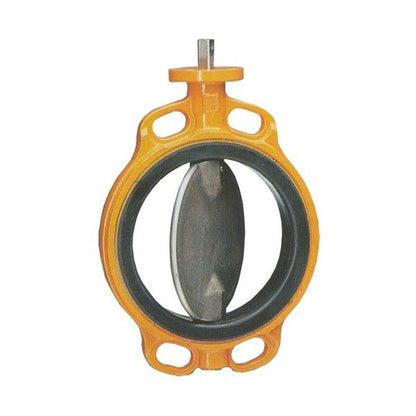

Eurovalve Series EVBS Semi Lug Butterfly Valve

Name: Eurovalve Series EVBS Semi Lug Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-91e5af
Price: 239.99 USD
Availability: OutOfStock

SKU:VAL-91e5af

Reliable Eurovalve Series EVBS Semi Lug Butterfly Valve - Ideal for institutional fluid control applications. Versatile and durable.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Eurovalve Series EVBS Semi Lug Valve is a top-tier solution for industrial fluid control applications. With a robust design meeting ISO 5752/EN 558 standards, it offers exceptional performance with options for manual, electric, pneumatic, or hydraulic actuation. Featuring a variety of material options including Ductile Iron, Stainless Steel, and Bronze RG10, this valve ensures reliability and longevity. Whether as an isolating valve or for precise regulation, the Eurovalve Series EVBS excels in versatility and functionality, making it a prime choice for institutional and government buyers.

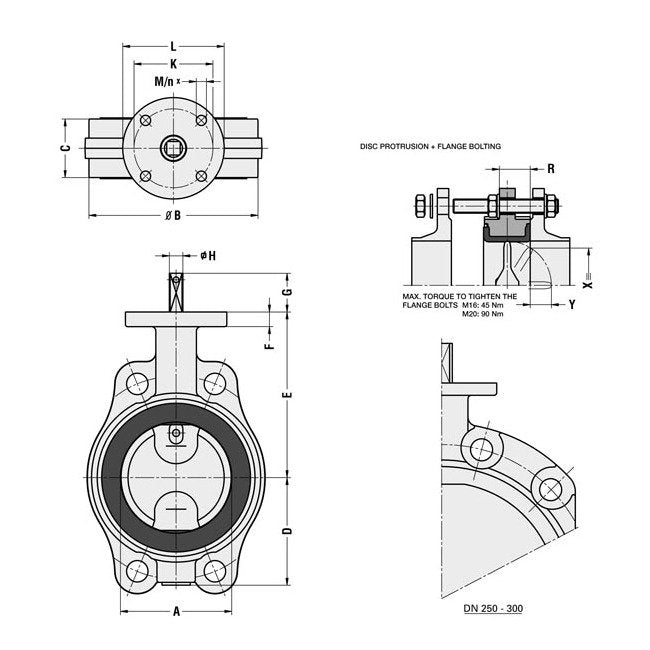

Product Specifications

Specifications A

65 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

115 mm

Specifications C

46 mm

Specifications D

71 mm

Specifications E

126 mm

Specifications F

12 mm

Specifications Flange Connections

PN 10 | PN 16

Specifications G

34 mm

Specifications H Diameter

10 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

32 mm

Specifications Size

DN65 - 2-1/2" | 65 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

3.6 kg

Specifications X

46 mm

Specifications Y

10 mm

Eurovalve Series EVBS Semi Lug Butterfly Valve
