Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

VAL-d2252c

Eurovalve Series EVBS Butterfly Valve - DN125, PN16, Bare Shafted, High-Quality Cast Iron Construction

$259.99
$259.99
Sale

Initiate Order

Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

$259.99

Quantity: 1

Claim Your Seller Account

Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve

$259.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

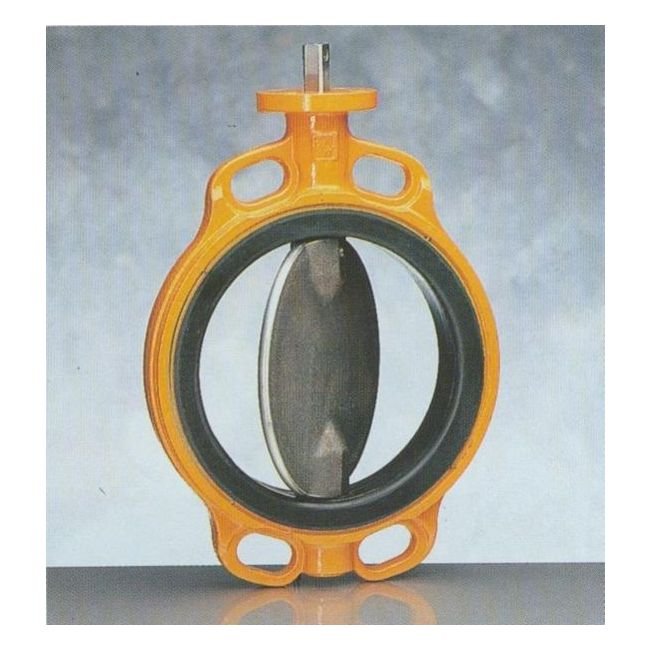

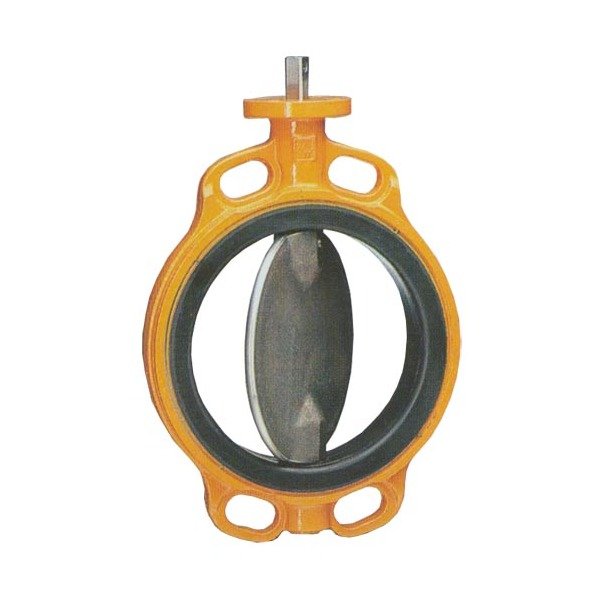

The Eurovalve Series EVBS Semi Lug Cast Iron Butterfly Valve is a high-performance valve suitable for both consumer and institutional applications. With a DN125 size and PN16 rating, this valve offers exceptional durability and precision in fluid control. Crafted from high-quality materials like GG25 Cast Iron and Stainless Steel, it ensures reliable performance in demanding environments. The valve functions as an isolating and regulating valve, with a shut off pressure of up to 16 bar, meeting stringent industry standards for quality and safety.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

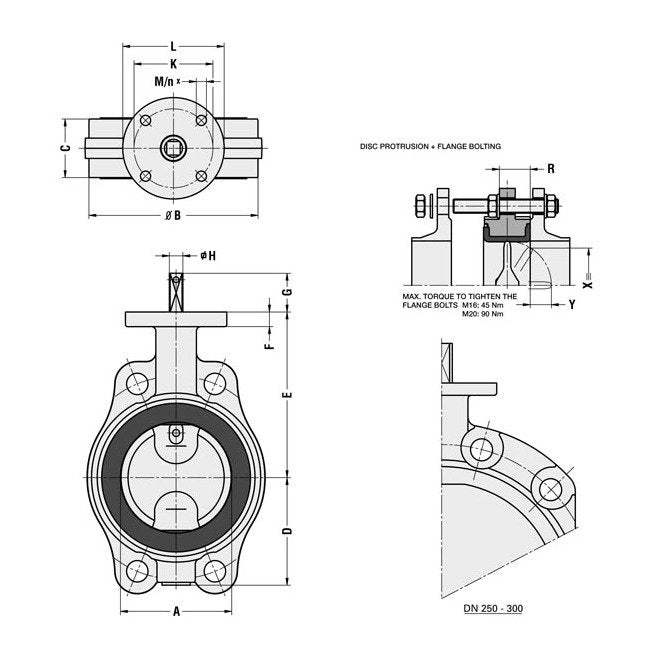

Specifications A
125 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
182 mm
Specifications C
56 mm
Specifications D
109 mm
Specifications E
160 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
12 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
39 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN125 - 5" | 125 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
7.0 kg
Specifications X
112 mm
Specifications Y
35 mm
