Eurovalve Series EVFL Double Flanged Long Valve
Eurovalve Series EVFL Double Flanged Long Valve
SKU:VAL-2ff6e0
Premium Eurovalve Series EVFL Double Flanged Long Valve - ISO compliant, versatile actuation, bi-directional sealing, ideal for industrial use.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Eurovalve Series EVFL Double Flanged Long Valve
$2,599.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFL Double Flanged Long Valve
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

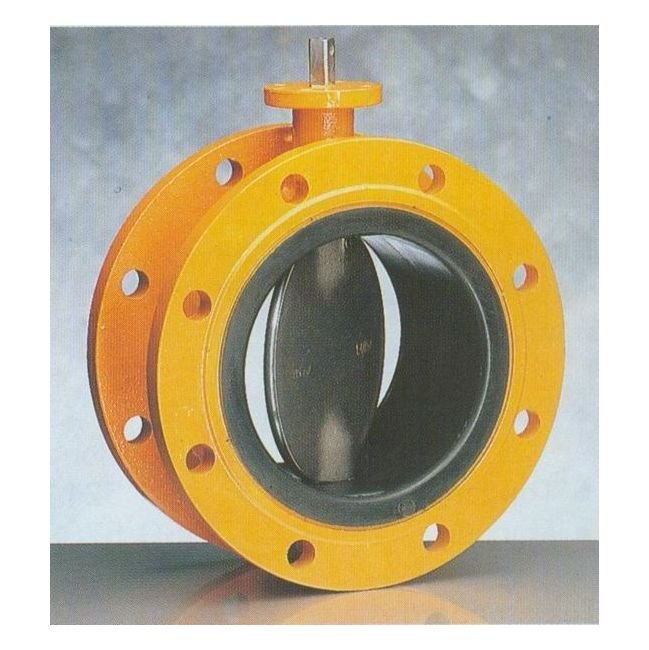

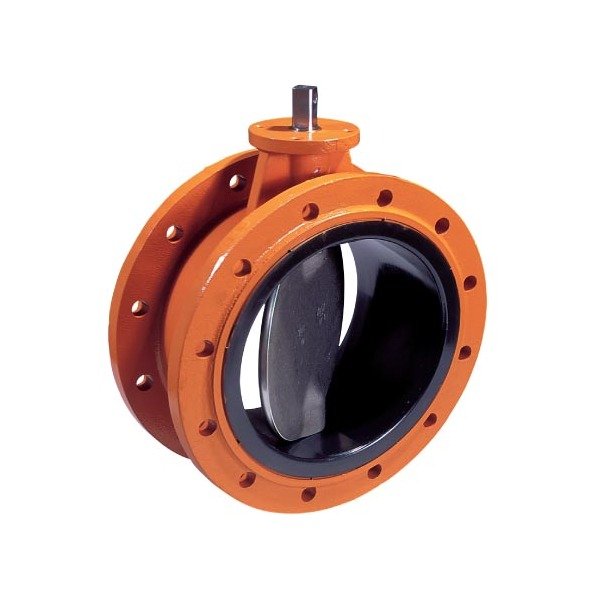

The Eurovalve Series EVFL Double Flanged Long Valve is a high-performance concentric butterfly valve with a vulcanized rubber lining, compliant with ISO 5752 / EN 558 standards. Available in sizes DN40 - 2000, it offers multiple body material options including GGG40 Ductile Iron, Stainless Steel, and more. With versatile actuation choices (Manual, Electric, Pneumatic, Hydraulic) and top flange ISO 5211 design, this valve ensures reliable operation for isolating and regulating functions. Its bi-directional tight shut off, ISO 5208 leakage rate, and various type approvals make it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

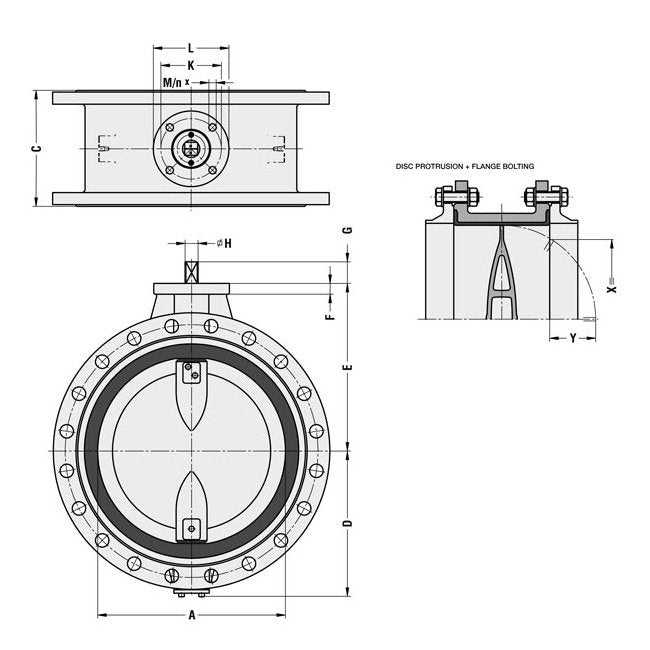

Specifications A
1484 mm
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications Size
DN1500 - 60" | 1500 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
