Eurovalve Series EVFL Double Flanged Long Valve - 12"
Eurovalve Series EVFL Double Flanged Long Valve - 12"
SKU:VAL-f919bb
Versatile Eurovalve Series EVFL Double Flanged Long Valve - Reliable, Durable, and Precise. ISO Compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Eurovalve Series EVFL Double Flanged Long Valve - 12"
$899.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFL Double Flanged Long Valve - 12"
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

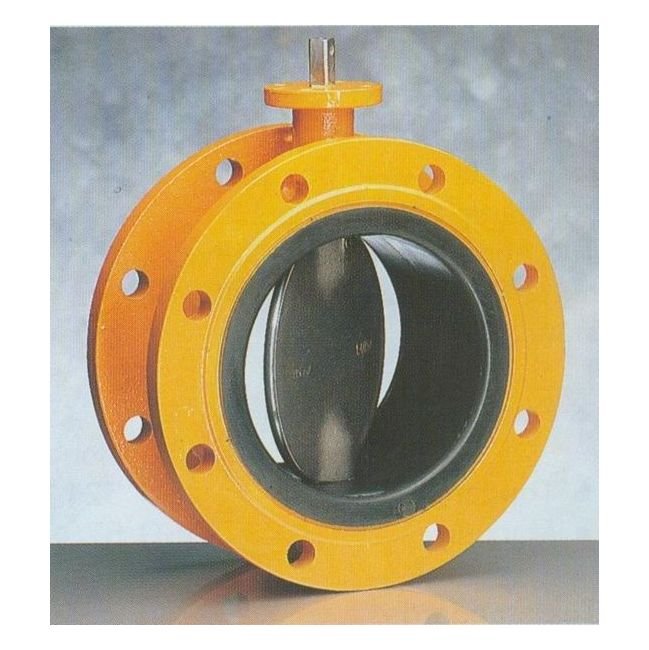

The Eurovalve Series EVFL Double Flanged Long Valve is a robust isolating and regulating valve designed for industrial applications. With a durable construction featuring materials like Bronze RG10, Stainless Steel, and EPDM Standard Grade lining, this valve ensures reliable performance under high pressures. Compliant with ISO standards, this valve offers versatile actuation options and precise shut-off capabilities, making it ideal for critical systems.
Ready to Grow Without Cash Flow Constraints?

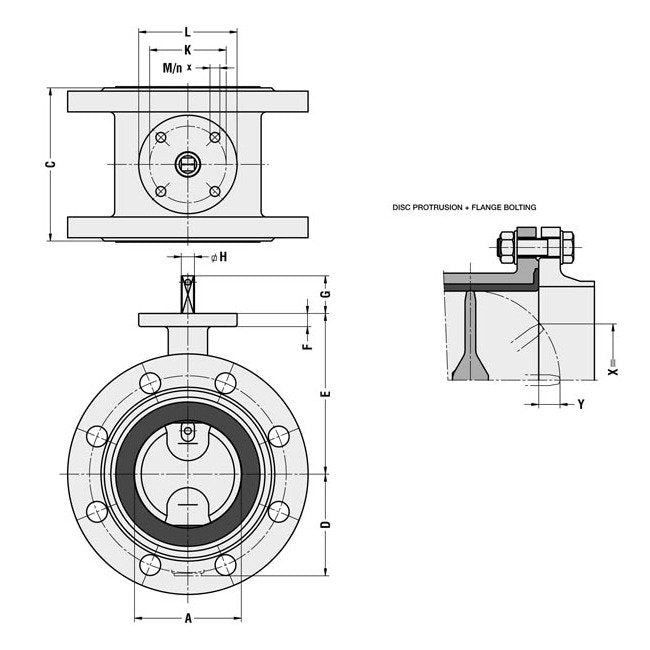

Product Specifications
Specifications A
300 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
270 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
90.0 kg
Specifications X
131 mm
Specifications Y
15 mm
