Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
SKU:VAL-565c68
Premium gear-operated cast iron butterfly valve for industrial applications with DIN standards compliance.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
$699.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

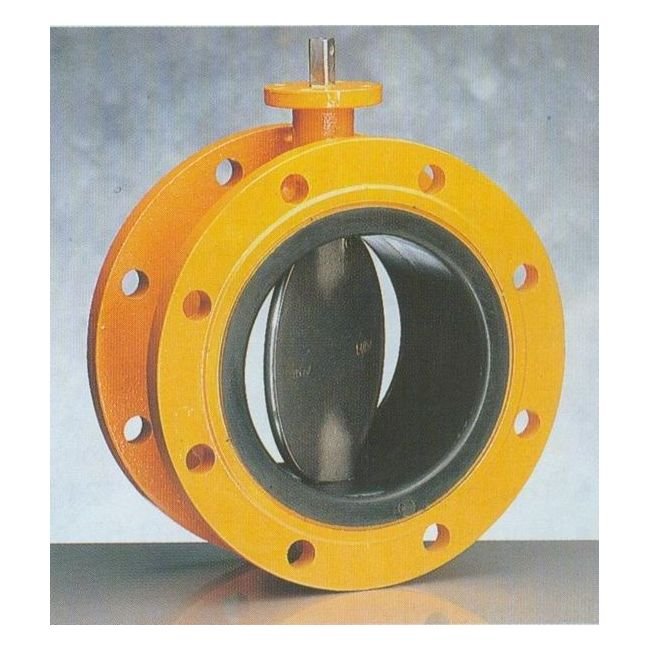

The Eurovalve Series EVFL Gear Operated Cast Iron Butterfly Valve is engineered for optimal performance in industrial applications. With a DN300 size and PN16 pressure rating, this valve offers precise flow control and reliable shut-off capabilities. Crafted from high-quality materials including GG25 Cast Iron body and Stainless Steel shaft, it ensures durability and corrosion resistance. The EPDM liner provides a tight seal, and the gear actuation allows for smooth operation. Compliant with DIN standards and approved by ABS, BV, DVGW, and more, this valve meets the stringent requirements of institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

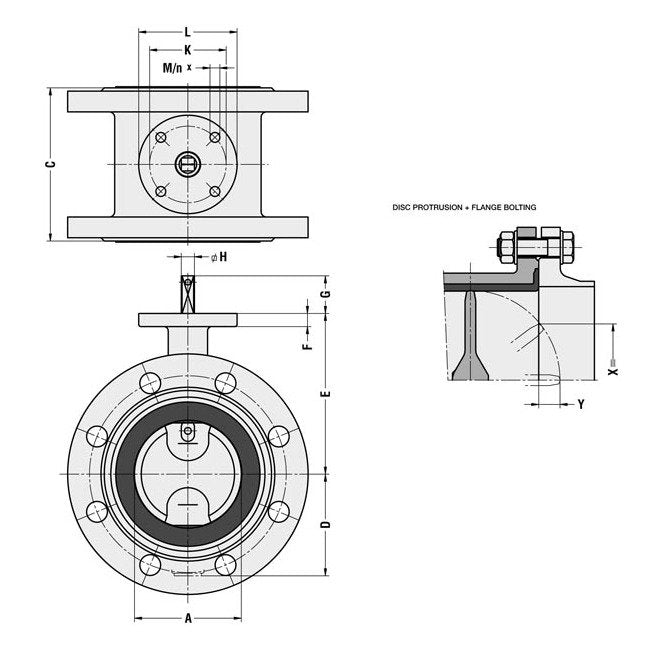

Specifications A
300 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
270 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 16
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 16
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
90.0 kg
Specifications X
131 mm
Specifications Y
15 mm
